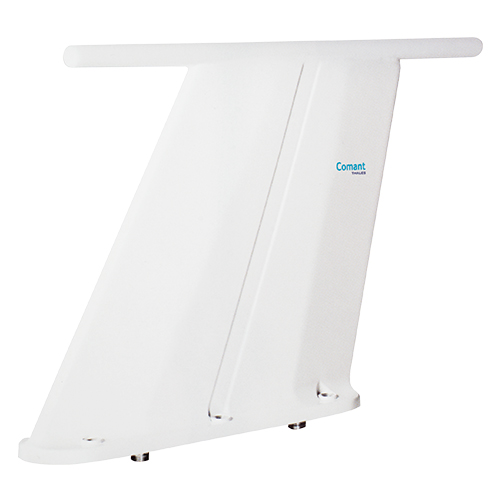

CI 295-300 ComDat VHF/UHF SAR Blade Antenna | 136–174 MHz, 380–520 MHz, & 764–870 MHz, 50 Ω, BNC & TNC Connectors, White

Product Description

The CI 295-300 SAR antenna is a six-through-hole-mount style VHF/UHF triple-function blade antenna with BNC and TNC ports. This antenna covers both VHF as well as lower and higher UHF communication frequencies for Public Service bands by Search and Rescue teams (SAR). It is suitable for either top or bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters.

This CI 295-300 SAR antenna (EDMO# CI-295-300) has a glossy white finish.

Specifications

• Weight:
  2.00 lb
• Frequency:
  136–174 MHz, 380–520 MHz, 764–870 MHz
• VSWR:
  3.0:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• RF Power:
  10 Watts CW
• Finish:
  Glossy White
• Connectors:
  J1 TNC Female
• RTCA Environmental:
  DO-160G
• MIL-STD:
  810G Method 514.6 Vibration Cat. 14-24

Product Codes

• Mfr Part No
  CI 295-300
• ECCN
  7a994
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 295-300 Data Sheet
• CI 295-300 Product Drawing
