CI 105-11 DME Transponder Antenna

CI 105-11 DME Transponder Antenna

COMANT INDUSTRIES

Call For Pricing
In stock
EDMO # CI-105-11
MFR Part # CI 105-11
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

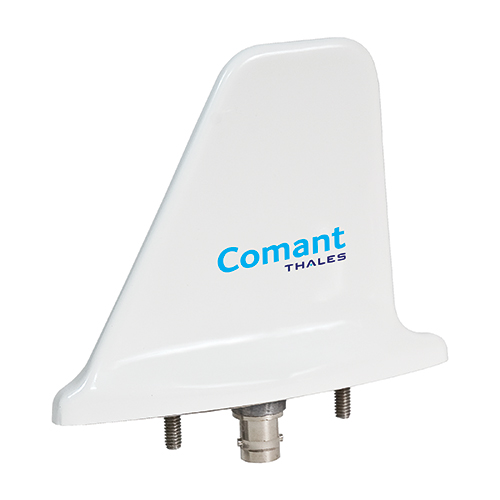

This CI 105 antenna (EDMO# CI-105-11) is a broadband and rugged L-band antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has a standard two stud mounting configuration.

Features

  • Encased in a glass reinforced polyester molded shell
  • Standard two stud mounting configuration
  • Includes a TNC connector

Also Purchased

Specifications

  • Weight:
    0.24 lb
  • Dimensions (height):
    3.23 in
  • Finish:
    Polyurethane Enamel
  • Connector:
    BNC (female)
  • Frequency:
    960–1220 MHz
  • VSWR:
    1.5:1 @ 960–1220 MHz, maximum 1.3:1 @ 1025–1150 MHz, maximum
  • Polarization:
    Vertical
  • Radiation Pattern:
    Equivalent to a 1/4 wave stub
  • Impedance:
    50Ω
  • Resistance DC:
    Open Circuit
  • Power RF:
    2.5 KW Peak
  • Operating Temperature:
    -54° to 55° C
  • Altitude:
    70,000 ft
  • Airspeed:
    400 Knots TAS at 25,000 ft
  • Gasket:
    B10505

Related Products

Product Codes

  • Mfr Part No
    CI 105-11
  • ECCN
    7A994
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C66b, C74c
