CI 292-2 VHF Communications Bent Whip Antenna | 118–137 MHz, 50 Ω, BNC Female Connector

Product Description

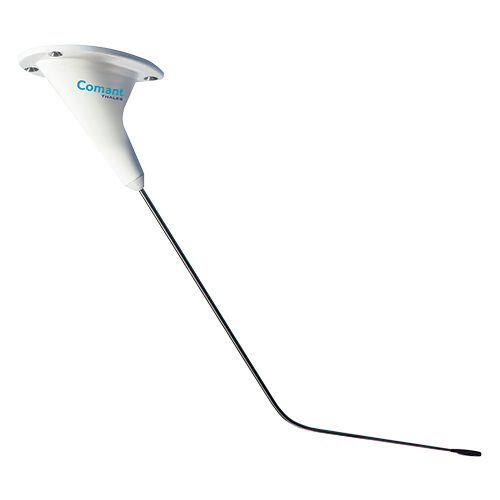

The CI 292-2 antenna (EDMO# CI-292-2) is a three-through-hole-mount style VHF communications bare bent whip antenna with a BNC port. This antenna is equivalent to the CI 291 VHF communications whip antenna except it features a bent tapered stainless steel radiator. It is designed with a narrow mounting pattern and is suitable for bottom mounting on light fixed-wing single-engine and multi-engine aircraft.

Specifications

• Weight:
  0.75 lb
• Height:
  8.5 in
• Total Length:
  23.5 in
• Frequency:
  118–137 MHz
• VSWR:
  3.0:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance RF:
  50 Ω
• Power RF:
  50 W
• Material:
  Cast Housing / Stainless Steel Whip
• Finish:
  White Polyurethane Enamel
• Specification
  Connector: BNC Female
• Temperature:
  -55°C to 85°C
• Altitude:
  50,000 ft.
• Airspeed:
  250 KTAS
• FAA TSO:
  C37d, C38d
• RTCA Environmental:
  DO-160D

Product Codes

• Mfr Part No
  CI 292-2
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d

Documentation

• CI 292-2 Data Sheet
• CI 292-2 Product Drawing
