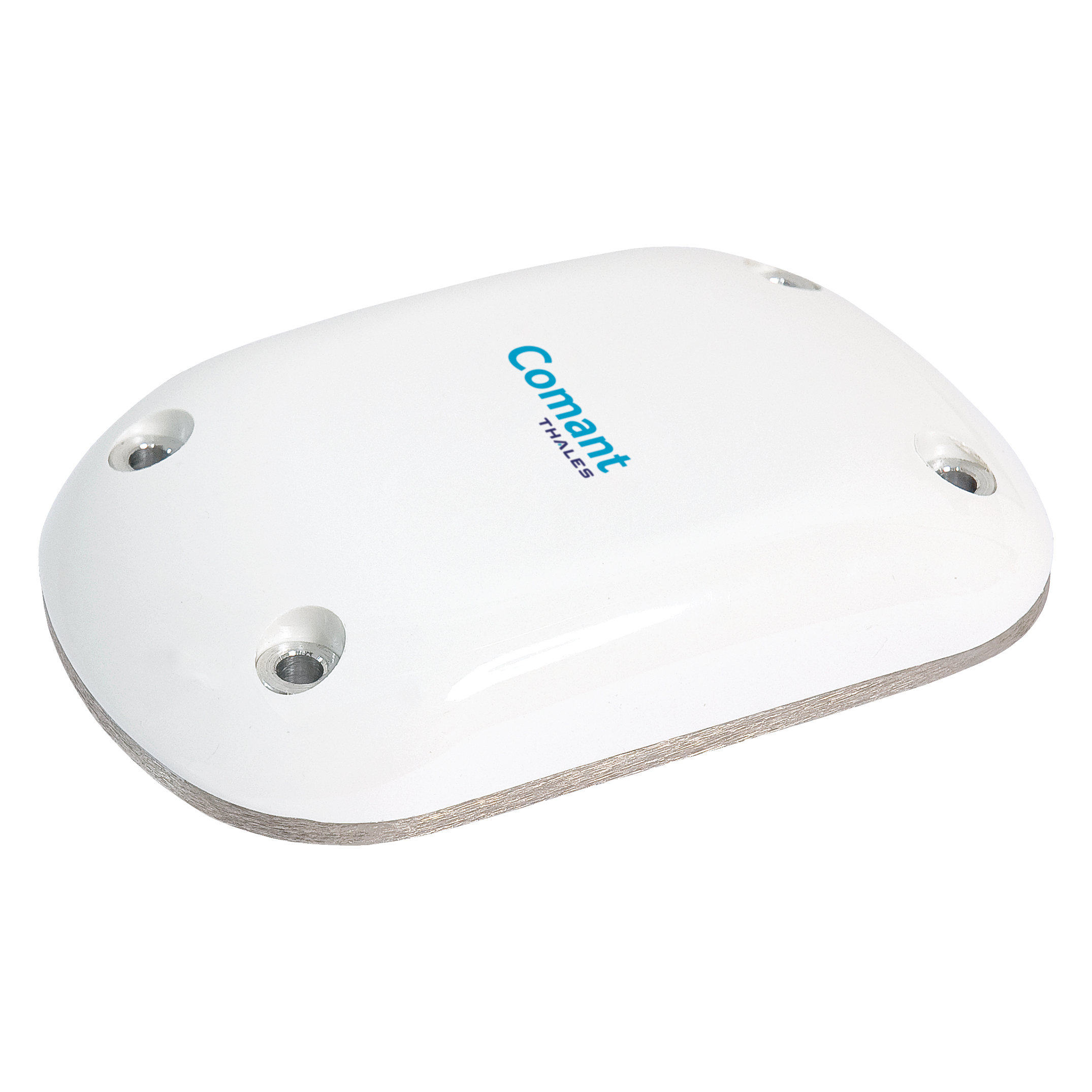

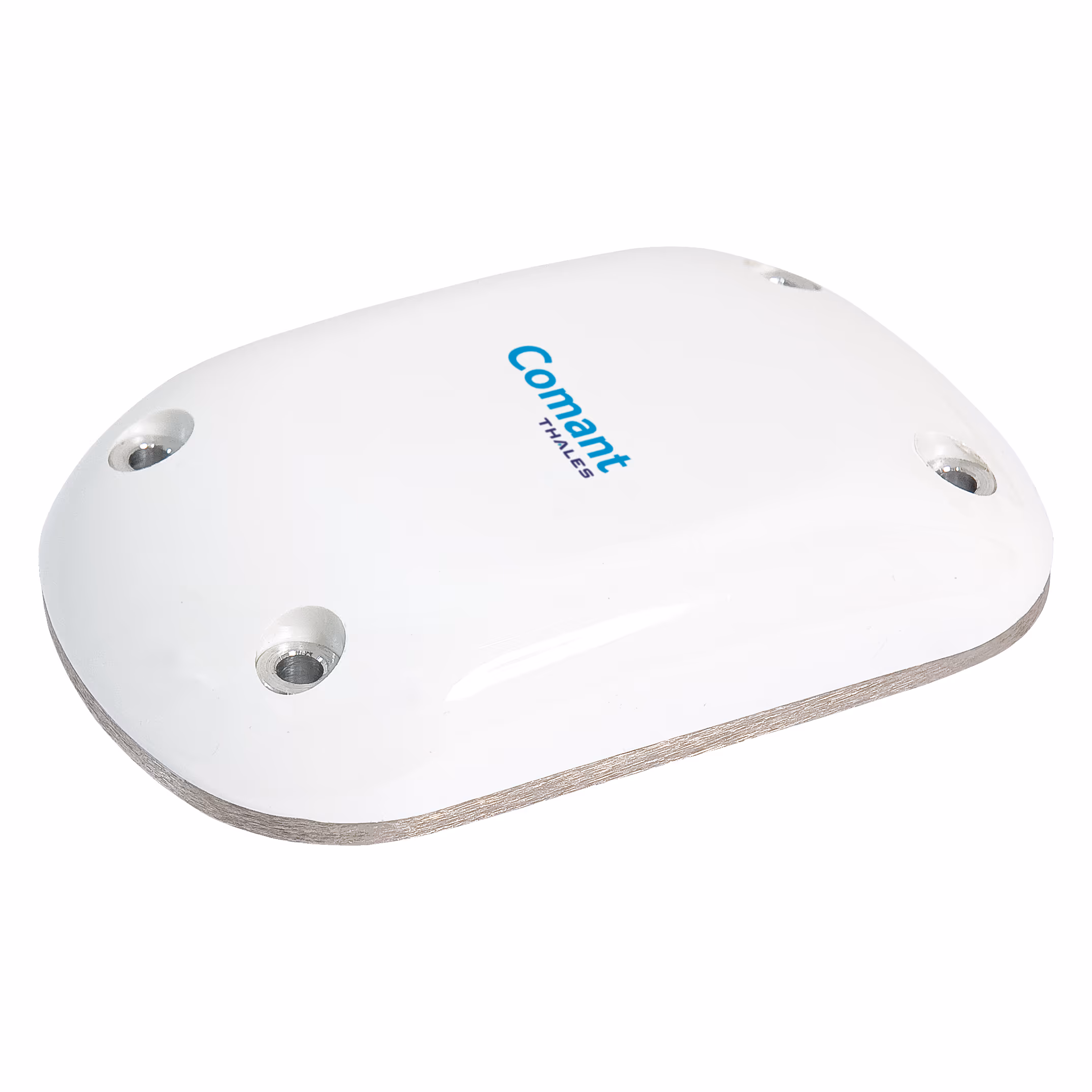

CI 401-490 Iridium Antenna | 1616.0–1626.5 MHz, 50 Ω, TNC Female Connector

Product Description

The CI 401-490 antenna (EDMO# CI-401-490) is a four-through-hole-mount style Iridium Satcom rectangle antenna (ARINC 743A footprint) with a TNC port. This antenna is Iridium C159a certified and designed for airborne Iridium based telephone, email, asset tracking or safety services. It is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

Specifications

• Weight:
  6.2 oz
• Frequency:
  1616.0–1626.5 MHz
• VSWR:
  1.5:1
• Polarization:
  RHCP
• Radiation Pattern:
  Hemispherical
• Impedance RF:
  50 Ω
• Power Handling:
  6.5 W
• Lighting Protection:
  DC Grounded
• Gain:
  3 dBic @ Zenith
• Finish:
  White Polyurethane Enamel
• Connector:
  TNC Female
• FAA TSO:
  C159a
• RTCA Environmental:
  DO-160G

Product Codes

• Mfr Part No
  CI 401-490
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529104000
• TSO
  C159a

Documentation

• CI 401-490 Data Sheet
• CI 401-490 Product Drawing
