CI 157P VOR/LOC/GS V Dipole Antenna | 108-118MHz & 329-335 MHz, 50 Ω, BNC Connector

Product Description

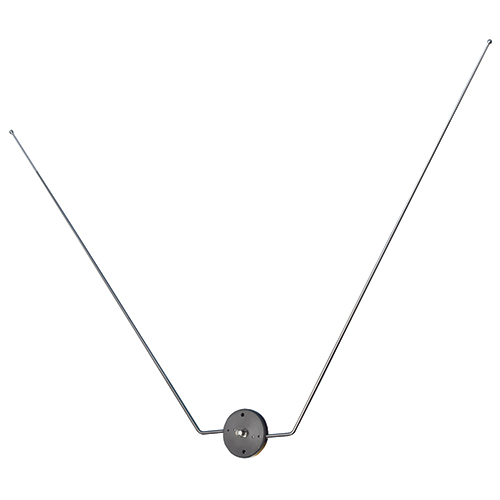

The CI 157P antenna (EDMO# CI-157P) is a two-through-hole-mount style staggered V dipole VOR/LOC/GS antenna with a BNC port. This antenna features a single navigation output that can be used in conjunction with signal diplexers to achieve the desired avionics signal input. It is designed with fixed staggered radiator elements and is suitable for mounting on the aircraft vertical stabilizer on light fixed-wing single-engine and multi-engine aircraft.

Specifications

• Weight:
  0.5 lb
• Height:
  18 in
• Frequency:
  108–118 MHz (VOR/LOC) 329–335 MHz (GS)
• VSWR:
  3.0:1
• Polarization:
  Horizontal
• Radiation Pattern:
  Dipole
• Impedance RF:
  50 Ω
• Power RF:
  Receive Only
• Temperature:
  -55ºC to 85ºC
• Altitude:
  15,000 ft
• Airspeed:
  250 Knots TAS @ 25,000 ft
• Certifications:
  FAA TSO C34e, C36e, C40c RTCA MOPS DO-192, DO-195, DO-196 RTCA Environmental DO-160C

Product Codes

• Mfr Part No
  CI 157P
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34e, C36e, C40c
