CI 102 Marker Beacon Antenna | 75 MHz

Product Description

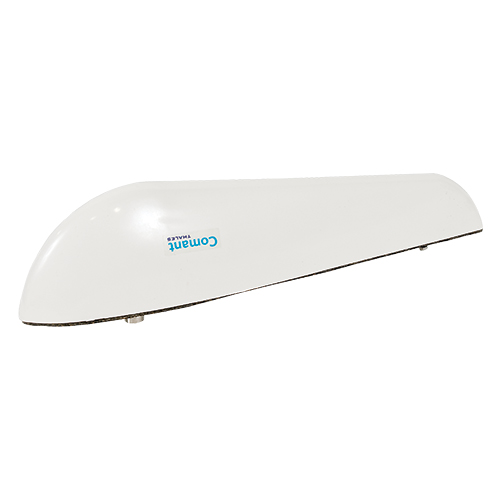

The CI 102 marker beacon antenna is designed for use with modern, high sensitivity marker beacon receivers. Small and lightweight, this marker beacon features 4-hole internal mounting for simple installation. The antenna assembly is enclosed in an injection molded radome which is impervious to the tough environments typical of the underside of an aircraft.

Specifications

• Weight:
  0.6 lb
• Height:
  2.15 in
• Frequency:
  75 MHz
• VSWR:
  1.5:1 Maximum / Return Loss -13.98 dB
• Polarization:
  Parallel to mounting plane
• Radiation Pattern:
  E-Field parallel with flight direction
• Impedance RF:
  50Ω
• Resistance DC:
  DC grounded
• Power RF:
  Receive only
• Finish:
  Valox Polyester
• Connector:
  BNC (female)
• Temperature:
  -55 to 85 C
• Altitude:
  45,000 ft
• FAA TSO:
  C35d, Class A
• RTCA MOPS:
  DO 138, DO 143
• RTCA Environmental:
  DO-160A
• Gasket:
  C10208

Product Codes

• Mfr Part No
  CI 102
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C35d

Documentation

• CI 102 Data Sheet
• CI 102 Product Drawing
