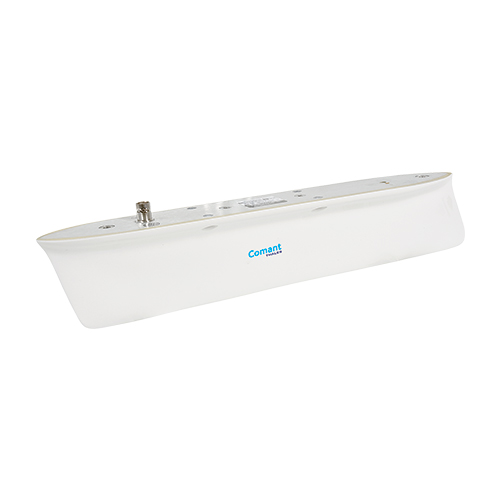

CI 118-10 Marker Beacon Antenna | High Speed Blade, 4 Hole Mount, BNC Connector, 75 MHz, 50 Ohms, 400 Knots

Product Description

The CI 118-10 marker beacon antenna (EDMO# CI-118-10) is identical to the CI-118 except with a 4-hole through mount configuration designed specifically for high-performance aircraft applications. It is a low profile blade-type encased in a molded polyurethane shell, and features an aerodynamic design in a lightweight package. This model has been tested to the tough DO-160D environmental standards. It is DC grounded to minimize accumulation of precipitation static, and Skydrol and rain erosion resistant.

Specifications

• Weight:
  0.80 lb
• Height:
  2.90 in
• Frequency:
  75 MHz
• VSWR:
  1.7:1
• Polarization:
  Parallel to mounting plane
• Radiation Pattern:
  Primarily Downward
• Impedance RF:
  50Ω
• Resistance DC:
  DC Grounded
• Power RF:
  Receive Only
• Construction:
  Molded Radome
• Finish:
  White Polyurethane Paint
• Connector:
  BNC (female)
• Airspeed:
  400 kt
• Temperature Rating:
  -55ºC to 85ºC
• Altitude:
  45,000 ft
• FAA TSO:
  C35d, Class A
• RTCA Environmental:
  DO-138

Product Codes

• Mfr Part No
  CI 118-10
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C35d

Documentation

• CI 118-10 Data Sheet
• CI 118-10 Product Drawing
