CI 105-6 DME Transponder Antenna

Product Description

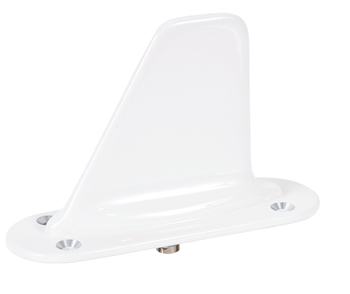

The CI 105-6 DME/Transponder antenna is identical to the CI 105 in operating characteristics, except it will provide the popular 4-hole external mounting typical on some turbo-prop and jet aircraft.

This antenna (EDMO# CI-105-6) includes a BNC connector, covers 960–1220 MHz and 1030–1090 MHz frequencies, and is rated to 400 Knots TAS at 25,000 ft.

Specifications

• Weight:
  0.4 lb
• Dimensions (height):
  3.31 in
• Finish:
  Polyurethane enamel
• Material:
  Molded radome
• Connector:
  BNC (female)
• Frequency:
  960–1220 MHz
• VSWR:
  1.5:1 @ 960 - 1220 MHz, maximum 1.3:1 @ 1025 - 1150 MHz, maximum
• Polarization:
  Vertical
• Radiation Pattern:
  Equivalent to a 1/4 wave stub
• Impedance:
  50Ω
• Resistance DC:
  Open circuit
• Power RF:
  2.5 KW Peak
• Temperature:
  -54° to 55° C
• Altitude:
  70,000 ft
• Airspeed:
  400 Knots TAS at 25,000 ft
• Gasket:
  B10505

Product Codes

• Mfr Part No
  CI 105-6
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C66b,C74c

Documentation

• CI 105-6 Data Sheet
• CI 105-6 Product Drawing
