AA35 Audio Mixer Panel Summing Amplifier

CANYON AEROCONNECT

Call For Pricing

Available to order

EDMO # AA35-100

MFR Part # AA35-100

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

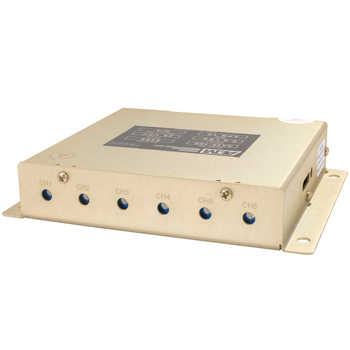

The AA35-100 Audio Mixer Panel is a summing amplifier which provides six independent channels with differential inputs and balanced outputs for high common mode noise rejection. Also provided is a composite output. Each channel is individually adjustable with a 40 dB range. The input audio level is internally selectable by DIP switch to 2.5 or 7 Vrms. Output impedance of each channel is individually selectable via internal jumpers to allow the connection of an 8 or 600Ω load. It can be used as an expansion panel for existing audio controllers.

Features

Six independent channels
Audio level DIP switch
Bulkhead mount style chassis
Differential input for high common mode noise reduction
Balanced output for high common mode noise reduction

Also Purchased

Specifications

Weight:

1.1 lb (500 g)
Dimensions:

112 x 5.68 x 5.75 in ( 28.4 x 144.27 x 146.05 mm
Input Audio level:

2.5 or 7 Vrms
Input Power:

27.5 VDC Input Current: 275 mA
Output Rated Level:
Specification

7.7 Vrms or 100 mW into 600Ω, 1.3 Vrms or 200 mW into 8Ω
Output Impedance:

20Ω, max Frequency Response: <3 dB from 350 to 600 Hz
Distortion:

<10% THD @ rated power output
Coupling:

<50 dB input to output crosstalk
Audio Noise Level Without Signal:

> 60 dB down from rated output level
Output Regulation at 400%

: <10% distortion / ∆3 dB max. of rated output power and 75% of rated load
Mounting:

Dzus rail
Material/Finish:

Chassis & cover are 5052-H32 brushed aluminum with conversion coating finish
