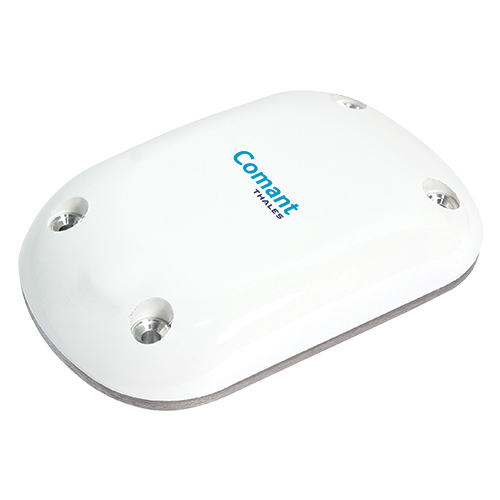

CI 428-200 GPS WAAS Rectangle Antenna | 1575.42 MHz, 50 Ω, 27 dB Gain, TNC Female Connector

CI 428-200 GPS WAAS Rectangle Antenna | 1575.42 MHz, 50 Ω, 27 dB Gain, TNC Female Connector

COMANT INDUSTRIES

Call For Pricing
Available to order
EDMO # CI-428-200
MFR Part # CI 428-200
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The CI 428-200 antenna (EDMO# CI-428-200) is a four-through-hole-mount style GPS WAAS rectangle antenna (ARINC 743A footprint) with TNC ports. This antenna is GPS C144 certified for class 3 LPV precision approaches and is designed to be used with Garmin WAAS GPS panel mount systems. It is suitable for top mounting for both light and heavy fixed-wing single-engine and multiengine aircraft and business jets.

Features

  • Covers the 1575.42 GPS WAAS frequency
  • Nominal 27 dB Gain
  • RHCP polarization
  • Hemispherical radiation pattern
  • TNC female connector
  • For use on light and heavy fixed-wing single-engine and multi-engine aircraft and business jets
  • Not compatible with most GPS handheld receiver systems

Also Purchased

Specifications

  • Weight:
    6.2 oz
  • Frequency:
    1575.42 ± 3 MHz
  • VSWR:
    1.5:1
  • Polarization:
    RHCP
  • Radiation Pattern:
    Hemispherical
  • Impedance:
    50 Ω
  • Gain:
    26.5–30.1 dB
  • DC Voltage:
    4–24 VDC
  • DC Current:
    40 mA (typical) / 60 mA (max)
  • Noise Figure:
    2.5 dB
  • Selectivity:
    -50 dB (min) @ Satcom 1626.5 MHz
  • Finish:
    White Polyurethane Enamel
  • Connector:
    TNC Female
  • Mounting:
    Four-hole mounting pattern
  • O-Ring Gasket:
    70486
  • FAA TSO:
    C144
  • RTCA Environmental:
    DO-160D

Related Products

Product Codes

  • Mfr Part No
    CI 428-200
  • ECCN
    7A994
  • PROAPP
    PT2316NM
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C144
