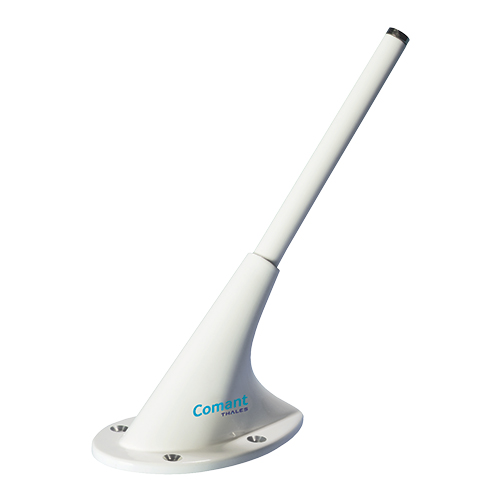

CI 177-20 UHF Communication Short Whip Antenna | 450–470 MHz, 50 Ω, BNC Female Connector

Product Description

The CI 177-20 whip antenna (EDMO# CI-177-20) is a four-through-hole-mount style UHF communication short whip antenna with a BNC port. This antenna is designed to support the 450–470 MHz frequency range and is suitable for bottom mounting on light fixed-wing single-engine and multi-engine aircraft and helicopters.

Specifications

• Weight:
  0.75 lb
• Height:
  7.0 in
• Frequency:
  450–470 MHz
• VSWR:
  2.0:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• RF Power:
  30 W
• Material:
  Die Cast Metal Base
• Finish:
  Glossy White Polyurethane Paint
• Connector:
  BNC Female
• Temperature Range:
  -55ºC to 55ºC
• Altitude:
  50,000 ft
• RTCA Environmental:
  DO-160D
• Gasket:
  B12607

Product Codes

• Mfr Part No
  CI 177-20
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 177-20 Data Sheet
• CI 177-20 Product Drawing
