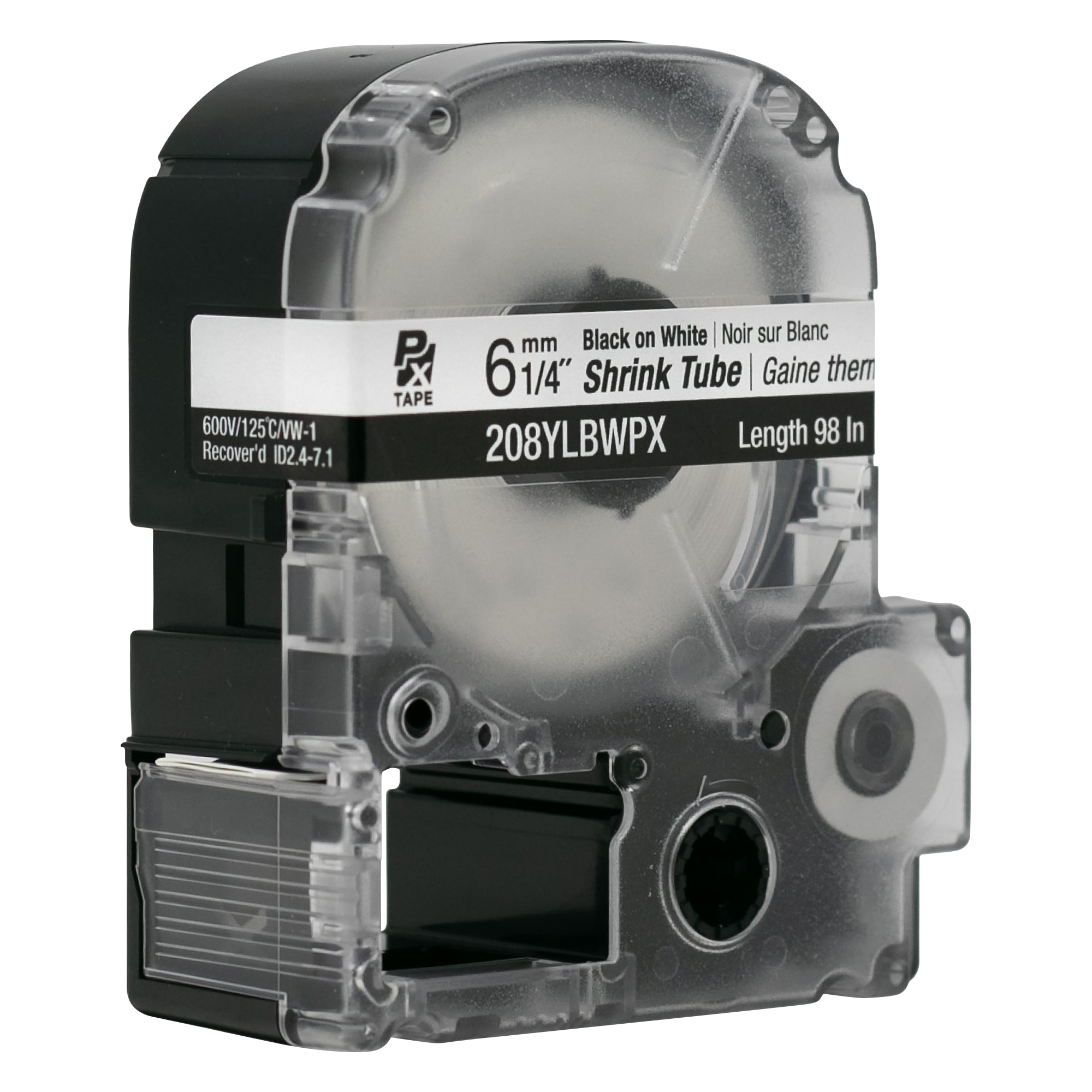

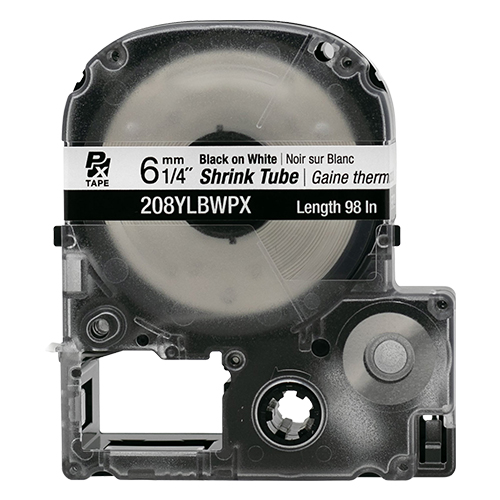

Epson LABELWORKS PX Shrink Tube | 1/4 x 98 in, 6–18 AWG, Black on White

EPSON

Call For Pricing

In stock

EDMO # 208YLBWPX

MFR Part # 208YLBWPX

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Electricians, Datacom and Telecom professionals, Railroad and Avionics technicians need reliable, durable, and permanent ways to mark their important wires. LABELWORKS PX Heat Shrink Tube is an excellent solution for these industries. Print right on the tube then slide over the desired wire (non-terminated ends work best) and shrink using a heat tool for a snug fit. Leave un-shrunk for moveable sheets, or shrink around multiple wires for optimum organization.

This Epson LABELWORKS PX Shrink Tube (EDMO# 208YLBWPX) is 1/4 x 98-inch, black text on white tape, and can be used on 6–18 AWG wire.

Features

98 inches in total length
3:1 shrink ratio single wall polyolefin construction
PX tapes are backwards compatible with older K-Sun® printers
PX tapes have standard rewind feature to reduce tape waste (works with PX rewind printers)
All supplies are RoHs and REACH compliant

Also Purchased

Specifications

Size:

1/4 in (6 mm)
Length:

98 in (2.44 m)
AWG:

6–18
Shrink Ratio:

3:1
Internal Diameter:

7.5 mm (min)
Wire Diameter:

0.095–0.260 in (2.4–6.6 mm)
Color:

Black on White
Type:

Shrink Tube
Split Back:

No
Shrink Temperature:

Min. 70°C
Full Recovery Temperature:

Above 110°C
Print Operating Temperature:

5°C to 35°C
Service Temperature:

-55°C to 135°C
Storage Condition:

From -10°C to 40°C and from 30% to 80% Relative Humidity
Compatible Printers:

LW-Z5010PX, LW-Z5000PX, LW-PX900, LW-PX800, LW-PX750, LW-PX700, LW-PX400, LW-PX350, LW-C610PX
