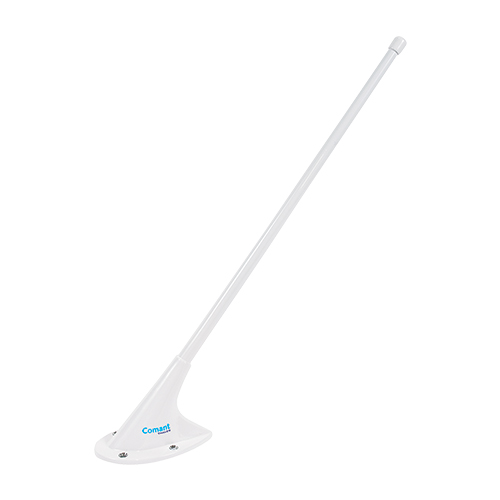

CI 177-2 FM 2 Whip Antenna | 138-174 MHz, BNC

CI 177-2 FM 2 Whip Antenna | 138-174 MHz, BNC

COMANT INDUSTRIES

Call For Pricing
In stock
EDMO # CI-177-2
MFR Part # CI 177-2
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The CI 177-2 whip antenna is designed for use over the public service FM Frequency band. The mounting uses the popular 4 hole with the radiating element enclosed in a high strength tapered glass laminate housing.

Features

  • 138-174 MHz frequencies
  • Vertical polarization
  • Omnidirectional radiation pattern
  • Molded base
  • 4-hole mounting
  • Enclosed radiating element
  • High strength tapered glass laminate housing

Also Purchased

Specifications

  • Weight:
    0.50 lb
  • Height:
    14.5 in
  • Frequency:
    138-174 MHz
  • VSWR:
    2.5:1 maximum
  • Polarization:
    Vertical
  • Radiation Pattern:
    Omnidirectional
  • Impedance (RF):
    50 ohms
  • Power (RF):
    50 watts
  • Temperature:
    -55ºC to +55ºC
  • Altitude:
    30,000 ft
  • Certifications:
    FAA TSO C37b, C38b

Related Products

Product Codes

  • Mfr Part No
    CI 177-2
  • ECCN
    7A994
  • SCHEDULE B CODE
    8803.90.9010
  • TSO
    tso c37b,c38b
