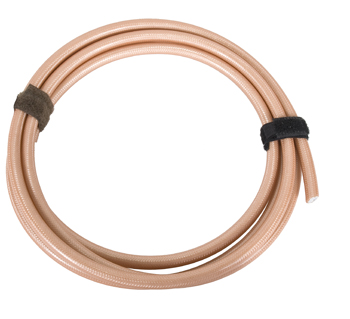

RG-400 Coaxial Cable | MIL-C-17

Product Description

RG-400 coaxial cable is manufactured for high temperature, high performance, and low noise applications which meet MIL-C-17 specifications. The RG-400 coaxial cable has a silver-plated, stranded copper conductor and two braided shields.

Specifications

• Center Conductor:
  0.0384 in (19/0.008 in)
• Dielectric:
  0.116 in PTFE
• Shield:
  SPC (2)
• Jacket:
  FEP
• Overall Diameter
  : 0.195 in
• Minimum Recommended Bend Radius:
  1 in
• Operating Temperature:
  -55°C to 200°C
• Weight:
  50 lb/MFT
• Electrical Characteristics:
• Impedance:
  50Ω ±2Ω
• Capacitance:
  29.4 pF/ft
• Maximum Voltage:
  1900V
• Attenuation (typical):
  4.3 dB/100 ft (4.5 dB/100 ft, maximum) @ 100 MHz 8.6 dB/100 ft (10.5 dB/100 ft, maximum) @ 400 MHz 14.1 dB/100 ft (18.1 dB/100 ft, maximum) @ 1 GHz 22.6 dB/100 ft (30.2 dB/100 ft, maximum) @ 2.4 GHz 35.6 dB/100 ft (52.1 dB/100 ft, maximum) @ 5 GHz 61.6 dB/100 ft (78.0 dB/100 ft, maximum) @ 10 GHz
• Maximum Frequency:
  12.4 GHz

Product Codes

• Mfr Part No
  M17/128-RG400
• MIL SPEC
  MIL-C-17/128G""
• ECCN
  EAR99
• MIL SPEC
  MIL-C-17/128G""
• SCHEDULE B CODE
  8544.11.0050
• UL
  MIL-DTL-17 REVH/UL1971
