CI 215 VOR/LOC/GS V Dipole Antenna | 108–118 MHz & 329–335 MHz, 50 Ω, BNC Female Connector

Product Description

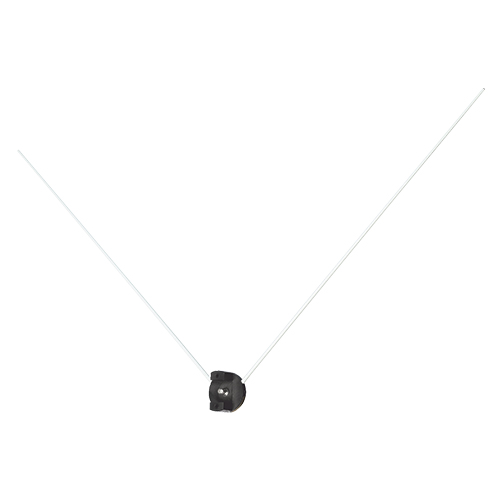

The CI 215 antenna (EDMO# CI-215) is a two-through-hole-mount style VOR/LOC/GS V dipole antenna with a BNC port. This antenna features a molded mounting stand for increased strength and a single navigation output that can be used in conjunction with signal diplexers to achieve desired avionics signal input. It is designed with detachable radiator elements and is suitable for mounting on vertical stabilizers on light fixed-wing single-engine and multi-engine aircraft.

Specifications

• Weight:
  0.6 lb
• Height:
  16 in
• Frequency:
  108–118 MHz (VOR/LOC) 329–335 MHz (GS)
• VSWR:
  3.0:1
• Polarization:
  Horizontal
• Radiation Pattern:
  Dipole
• Impedance RF:
  50 Ω
• Power RF:
  Receive Only
• Material:
  Delrin Mounts/Glass Laminate Whips
• Finish:
  Black Housing/Glossy White
• Connector:
  BNC Female
• Temperature:
  -55°C to 85°C
• Altitude:
  35,000
• Airspeed:
  250 KTAS @ 25,000 ft
• FAA TSO:
  C34c, C36c, C40a
• RTCA Environmental:
  DO-160

Product Codes

• Mfr Part No
  CI 215
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34c,C36c,C40a

Documentation

• CI 215 Data Sheet
• CI 215 Product Drawing
