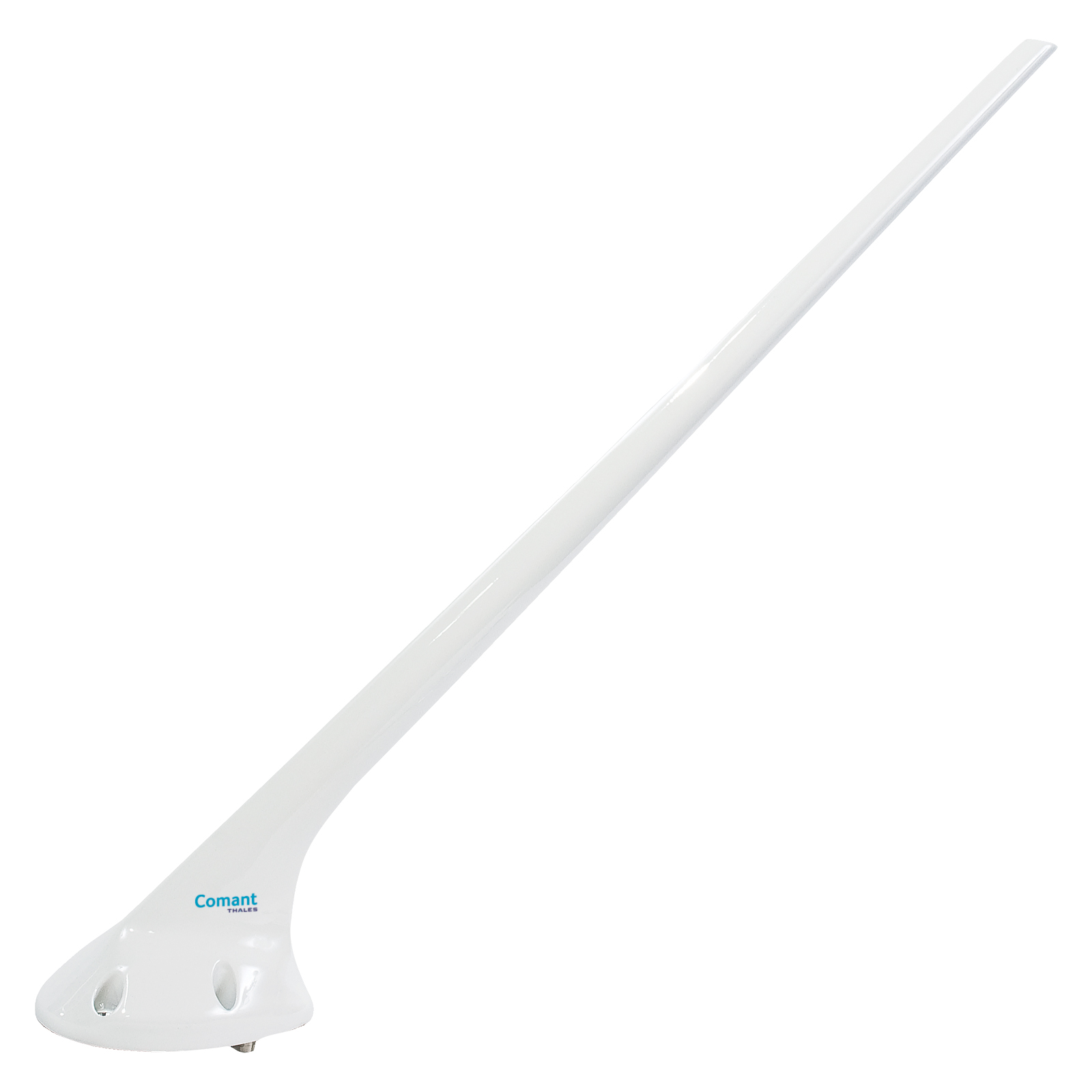

CI 2580-200 ComDat VHF/GPS WAAS Antenna | 118–137 MHz (VHF), 1575.42 ± 3 MHz (GPS), 26.5–30.1 dB Gain, 50 Ω, BNC & TNC Connectors

Product Description

The CI 2580-200 ComDat antenna (EDMO# CI-2580200) is a four-through-hole-mount style VHF/GPS WAAS whip antenna with BNC and TNC ports. This antenna covers both VHF communication and GPS frequencies and is GPS C144 certified for class 3 LPV precision approaches. It is designed to be used with 27 dB gain Garmin WAAS GPS panel mount systems and is suitable for top mounting on both light and heavy fixed-wing single-engine aircraft and helicopters.

Specifications

• Weight:
  0.6 lb
• Connectors:
  VHF: BNC GPS: TNC
• FAA TSO:
  C169 (Class C,D,E,3,4,5,6), C144
• RTCA Environmental:
  DO-160D
• VHF SPECIFICATIONS:
• Frequency:
  118–137 MHz
• VSWR:
  2.5:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• Power Rating:
  50 W
• GPS PREAMPLIFIER:
• Frequency:
  1575.42 ± 3 MHz
• VSWR:
  1.5:1
• Polarization:
  RHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  26.5–30.1 dB
• DC Voltage:
  4–24 VDC
• DC Current:
  40 mA (Typical), 60 mA (Max)
• Noise:
  2.5 dB

Product Codes

• Mfr Part No
  CI 2580-200
• ECCN
  7A994
• NSN
  5985-01-565-3969
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C169 (INCOMPLETE SYSTEM), C144

Documentation

• CI 2580-200 Data Sheet
• CI 2580-200 Product Drawing
