CI 105 DME Transponder Antenna

Product Description

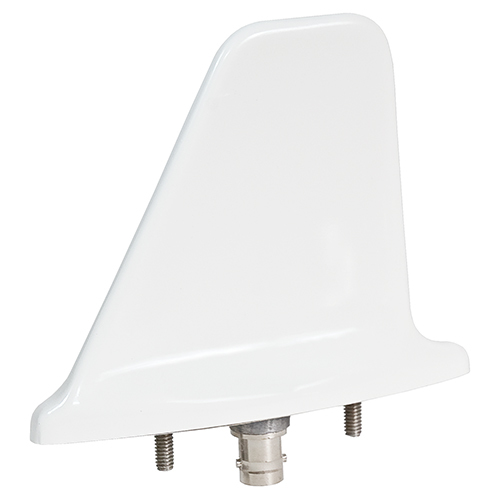

The CI 105 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has a standard two stud mounting configuration.

Specifications

• Weight:
  0.24 lb
• Dimensions:
  3.23 in, height
• Finish:
  Polyurethane enamel
• Connector:
  BNC (female)
• Frequency:
  960 MHz to 1220 MHz
• VSWR:
  1.5:1 @ 960 Mhz – 1220 MHz, maximum 1.3:1 @ 1025 MHz – 1150 MHz, maximum
• Polarization:
  Vertical
• Radiation Pattern:
  Equivalent to a 1/4 wave stub
• Impedance:
  50Ω
• Resistance DC:
  Open circuit
• Power RF:
  2.5 KW, Peak
• Temperature:
  -54°C to 55°C
• Altitude:
  70,000 ft
• Airspeed:
  400 Knots TAS at 25,000 ft
• Gasket:
  B10505

Product Codes

• Mfr Part No
  CI 105
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C66b,C74c

Documentation

• CI 105 Data Sheet
• CI 105 Product Drawing
