CI-2728410 ComDat VHF/WAAS GPS/XM Antenna | 118–137 MHz (VHF), 1575.42 ± 3 MHz (GPS) & 2332.5–2345 MHz (XM), 50 Ω, BNC, TNC, & SMA Connectors
Product Description

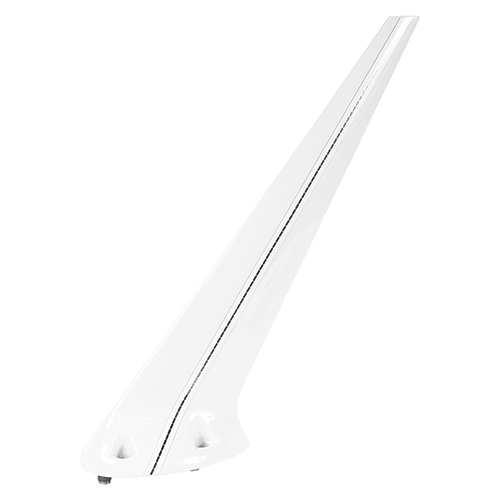

The CI 2728-410 ComDat antenna (EDMO# CI-2728410) is a four-through-hole-mount style, triple-function VHF Communications/GPS WAAS/XM Weather & Radio blade antenna with BNC, dual TNC ports, and lighting protection. This antenna covers VHF communication, GPS, and XM frequencies and is GPS C144 certified for class 3 LPV precision approaches. It is designed to be used with Garmin WAAS GPS and XM panel mount systems and is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.
Features
- VHF: 118–137 MHz
- GPS: 1575.42 ± 3MHz
- XM: 2332.5–2345 MHz
- 26.5–30.1 dB GPS Gain; 25 ± 2 dB XM Gain
- Compatible with Garmin WAAS GPS and XM panel mount receiver systems
- Not compatible with most portable GPS receiver systems
- BNC VHF connector
- TNC GPS connector
- SMA XM connector
Specifications
Weight:
1.25 lb
Connectors:
VHF: BNC
GPS: TNC
XM: SMA
FAA TSO:
C144, C169
RTCA Environmental:
DO-160D
VHF COMMUNICATIONS:
Frequency:
118–137 MHz
VSWR:
2.5:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance:
50 Ω
Power Rating:
50 W
GPS AMPLIFIER:
Frequency:
1575.42 ± 3 MHz
VSWR:
1.5:1
Polarization:
RHCP
Radiation Pattern:
Hemispherical
Impedance:
50 Ω
Gain:
26.5–31.5 dB
DC Voltage:
4–24 VDC
DC Current:
40–60 mA
Noise:
3.8 dB
XM/WEATHER AMPLIFIER:
Frequency:
2332.5–2345 MHz
VSWR:
1.5:1
Polarization:
LHCP
Radiation Pattern:
Hemispherical
Impedance:
50 Ω
Gain:
25 ± 2 dB
DC Voltage:
4–24 VDC
DC Current:
25–55 mA
Noise:
2.7 dB
Product Codes
- Mfr Part No:CI 2728-410
- EDMO #:CI-2728410
- Brand:COMANT INDUSTRIES
- Category:Antennas & Couplers
- ECCN:7A994
- NCNR:Non-Cancellable/Non-Returnable
- NON-WARRANTY:Lightning Strips Not Covered under Warranty
- PROAPP:PT2316NM
- SCHEDULE B CODE:8529.10.4000
- TSO:C169 (Incomplete system) C144
