CI-428-410 ComDat WAAS GPS/XM Weather & Radio Antenna | 1575.42 MHz & 2332.5–2345.0 MHz, 50 Ω, 27 dB (GPS) & 25 dB (XM) Gain, TNC Female Connectors

Product Description

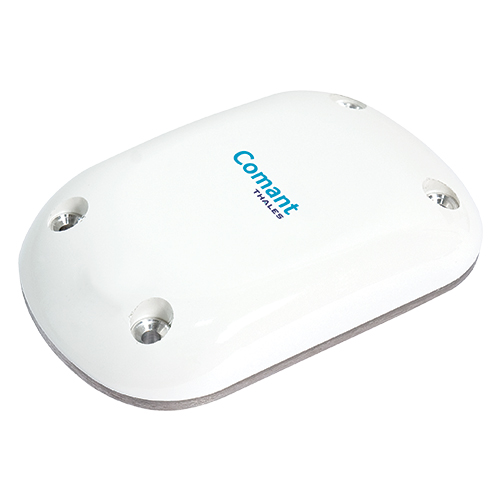

The CI 428-410 ComDat antenna (EDMO# CI-428-410) is a four-through-hole-mount style WAAS GPS/XM Weather & Radio rectangle antenna (ARINC 743A footprint) with dual TNC ports. This antenna covers both GPS and XM frequencies and is GPS C190 certified for class 3 LPV precision approaches. It is designed to be used with 27 dB gain GPS panel mount and Garmin XM systems, and is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

Specifications

• Weight:
  6.5 oz
• Finish:
  White Polyurethane Enamel
• Connector:
  GPS: TNC Blue XM: TNC Red
• 'O' Ring Gasket:
  70486
• GPS PREAMPLIFIER:
• Frequency:
  1575.42 ± 3 MHz
• VSWR:
  1.5:1
• Polarization:
  RHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  26.5–30.1 dB
• DC Voltage:
  4–24 VDC
• DC Current:
  40–60 mA
• Noise Figure:
  2.5 dB
• Selectivity:
  -50 dB Min @ Satcom Frequency
• XM WEATHER DATA:
• Frequency:
  2332.5–2345.0 MHz
• VSWR:
  1.5:1
• Polarization:
  LHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  25 ± 2 dB
• DC Voltage:
  3.6–24 VDC
• DC Current:
  35–55 mA
• Noise Figure:
  2.7 dB
• FAA TSO:
  C144
• RTCA Environmental:
  DO-160D

Product Codes

• Mfr Part No
  CI 428-410
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  TSO C144
