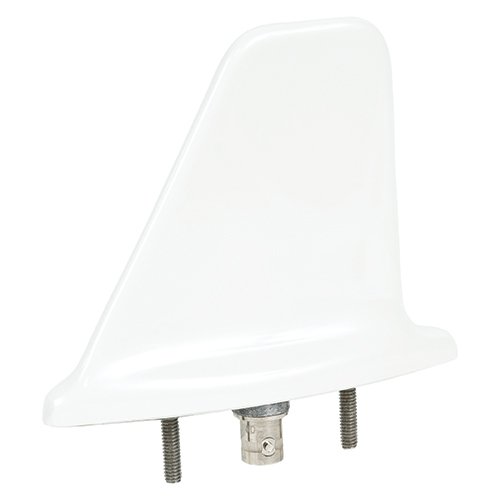

CI 105-16 DME Transponder Antenna

Product Description

The CI 105-16 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has an extended two stud mounting configuration. Tested to the tougher DO-160D environmental requirements, it offers the best in ruggedness and performance.

This antenna (EDMO# CI-105-16) was designed specifically to replace the Honeywell Bendix-King KA60. It includes a BNC connector, covers 960–1220 MHz frequencies and is rated to 400 Knots TAS at 25,000 ft.

Specifications

• Weight
  : 0.2 lb
• Height:
  3.23 in
• Finish:
  Polyurethane enamel
• Connector:
  BNC (female)
• Frequency:
  960–1220 MHz
• VSWR:
  1.5:1 @ 960–1220 MHz, maximum 1.3:1 @ 1025–1150 MHz, maximum
• Polarization:
  Vertical
• Radiation Pattern:
  Equivalent to a 1/4 wave stub
• Impedance:
  50Ω
• Resistance DC:
  Open circuit
• Power RF:
  2.5 KW Peak
• Temperature:
  -55°C to 85°C
• Altitude:
  70,000 ft
• Airspeed:
  400 Knots TAS at 25,000 ft

Product Codes

• Mfr Part No
  CI 105-16
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C66c,C74c

Documentation

• CI 105-16 Data Sheet
• CI 105-16 Product Drawing
