AV-585 Diplexer/Splitter | VOR/LOC/GS outputs

Product Description

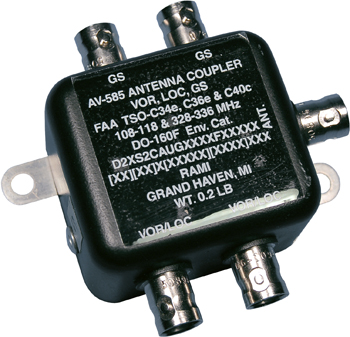

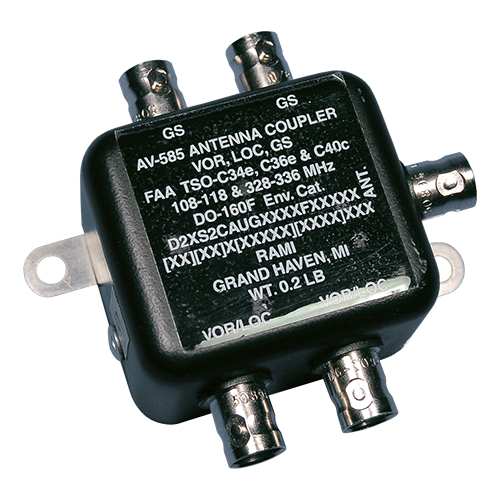

The AV-585 is a diplexer/splitter providing two VOR/ LOC and two GS outputs from one VOR/LOC/GC antenna. It is a direct replacement for the CI-1125.

Specifications

• Weight:
  3.2 oz
• Frequency:
  108 MHz to 118 MHz (VOR) 328 MHz to 336 MHz (GS)
• VSWR:
  1.5:1
• Impedance:
  50Ω
• Insertion loss:
  3.5 dB
• Isolation:
  20 dB
• Connector:
  BNC (female)
• FAA Approvals:
  TSO-C34e, TSO-C36e, TSO-C40a

Product Codes

• Mfr Part No
  AV-585
• ECCN
  7A994
• PROAPP
  PT2530CE
• SCHEDULE B CODE
  8526.10.0010
• TSO
  C34e, c36e, C40c

Documentation

• AV-585 Antenna Coupler Installation Instructions
