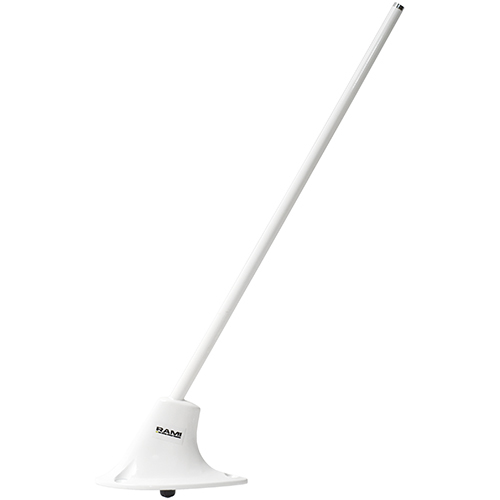

AV-300 ELT Antenna | Rod Type, 121.5 MHz, 243 MHz, & 406 MHz

RAMI

Call For Pricing
Available to order
EDMO # AV-300
MFR Part # AV-300
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV-300 ELT antenna is intended for use with a 406 MHz ELT (Emergency Locator Transmitter) for General Aviation. It is a passive three frequency fiberglass rod whip antenna, designed for low-speed aircraft (up to 350 knots). It has met DO-160G, Section 8, Category U requirements for robust vibration, and is qualified for installation on helicopters with unknown rotor frequencies.

Features

  • 121.5 MHz, 243 MHz, and 406 MHz frequencies
  • Vertical polarization
  • Omni-directional pattern
  • BNC female connector
  • White finish
  • Backed by the RAMI Limited Lifetime Warranty

Also Purchased

Specifications

  • Weight:
    9 oz
  • Height:
    14 in
  • Frequency:
    121.5 MHz, 243 MHz, & 406 MHz
  • Impedance:
    50Ω
  • VSWR:
    121.5 MHz & 243 MHz: 2:1, max. 406 MHz: 1.5:1, max.
  • Polarization:
    Vertical
  • Pattern:
    Omni-directional
  • Connector:
    BNC (female)
  • RF Power:
    10 watts CW
  • Approvals:
    TSO-C126a

Related Products

Product Codes

  • Mfr Part No
    AV-300
  • ECCN
    7A994
  • PROAPP
    PT2530CE
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C126a (incomplete system)
