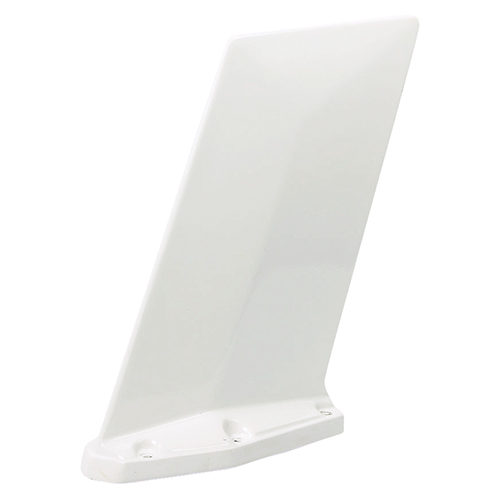

AV-925 Blade Antenna | 136–174, 380–520 & 760–870 MHz, 406 MHz ELT Qualified

AV-925 Blade Antenna | 136–174, 380–520 & 760–870 MHz, 406 MHz ELT Qualified

RAMI

Call For Pricing
Available to order
EDMO # AV-925
MFR Part # AV-925
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV‐925 antenna was developed to be used with airborne FM transceivers typically used in first responder type aircraft providing a single antenna solution for the multi-band transceivers.  It has met DO‐160G, Section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown related rotor frequencies.  It is also qualified to perform as a 406 MHz ELT antenna, and is well suited for this function on higher speed, fixed wing aircraft.

Features

  • FM airborne communications
  • Multi-band frequency (Non-TSO)
  • 406 MHz ELT antenna
  • Installation on helicopters and high speed fixed wing aircraft
  • BNC female connector

Specifications

  • Weight:
    1.8 lb
  • Frequency:
    136.0-174.0 MHz (Non TSO Function) 380.0-406.0 MHz (Non TSO Function) 406.0-406.1 MHz (TSO C126a) 406.1-520.0 MHz (Non TSO Function) 760.0-870.0 MHz (Non TSO Function)
  • Impedance:
    50Ω
  • VSWR:
    1.5:1 Max. (406.0-406.1 MHz) 3.0:1 Max. (all other bands)
  • Polarization:
    Vertical
  • Pattern:
    Omni-directional
  • RF Power Handling:
    10 Watts VHF, 5 Watts UHF Max
  • Connector:
    BNC female

Product Codes

  • Mfr Part No
    AV-925
  • ECCN
    7A994
  • PROAPP
    PT2530CE
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C126a
