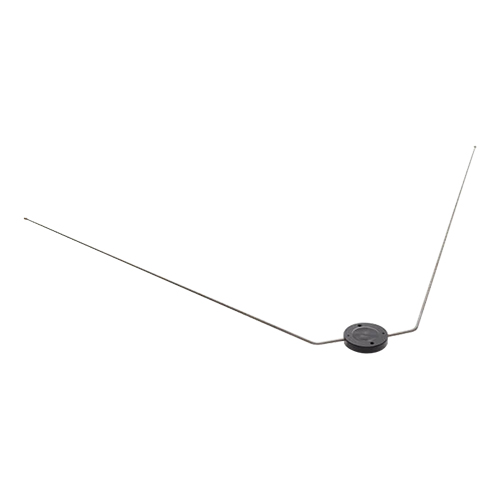

AV-525 VOR/LOC/GS Antenna | 108–118 MHz & 329–335 MHz

AV-525 VOR/LOC/GS Antenna | 108–118 MHz & 329–335 MHz

RAMI

Call For Pricing
In stock
EDMO # AV-525
MFR Part # AV-525
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV-525 is a VOR/LOC/GS (receive only) antenna similar in style to the AV-12 but utilizes an internal balun transformer. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 157P.

Features

  • 108–118 MHz (VOR/LOC) & 328–336 MHz (GS) frequency ranges
  • Horizontal polarization
  • Omni-directional pattern
  • BNC female connector
  • Backed by the RAMI Limited Lifetime Warranty

Also Purchased

Specifications

  • Max. Weight:
    0.50 lb
  • Application
    : VOR/LOC/GS Receive Only
  • Frequency
    : 108–118 MHz (VOR/LOC) 328–336 MHz (GS)
  • Impedance
    : 50 Ohms Nominal
  • VSWR
    : 3.0:1 Maximum 108–118 MHz 2.0:1 Maximum 328–336 MHz
  • Polarization
    : Horizontal
  • Pattern
    : Omni-directional
  • Connector:
    BNC Female
  • FAA Approvals:
    TSO-C34e, TSO-C36e, TSO-C40c

Related Products

Product Codes

  • Mfr Part No
    AV-525
  • ECCN
    7A994
  • PROAPP
    PT2530CE
  • SCHEDULE B CODE
    8526.10.0010
  • TSO
    C34e, C36e, C40c
