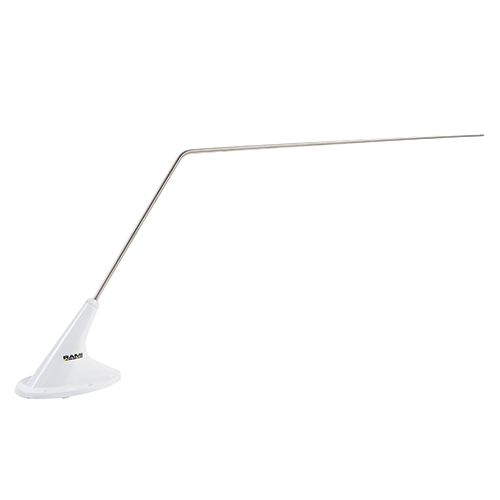

AV-17 VHF Communications Bent Whip Antenna | 118–137 MHz, White

Product Description

The AV-17 is designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and a low profile configuration that makes it ideal for helicopters and low-wing aircraft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph.

This AV-17 VHF Communications Bent Whip Antenna (EDMO# AV-17) is white in color.

Specifications

• Weight:
  8 oz
• Height:
  9.0 in
• Frequency:
  118 MHz – 137 MHz
• Impedance:
  50 Ω Nominal
• VSWR:
  3.0:1, maximum
• Polarization:
  Vertical
• Pattern:
  Omni-Directional
• Connector:
  BNC female
• Color:
  White
• RF Power Capacity:
  30 Watts
• FAA TSO:
  C37d, C38d

Product Codes

• Mfr Part No
  AV-17
• ECCN
  7A994
• PROAPP
  PT2530CE
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d
