AT-1108ARC VHF/UHF Airborne Antenna | 116–152 MHz, 225–400 MHz

Product Description

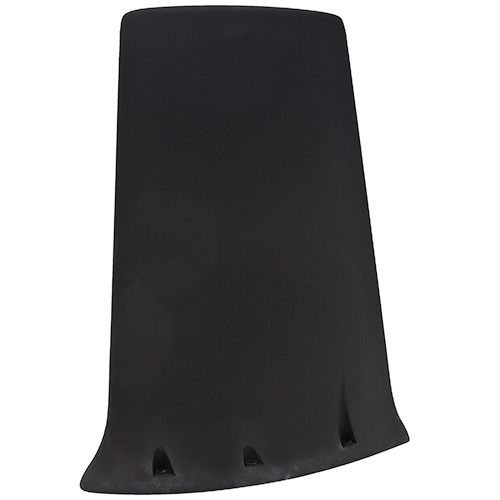

The AT-1108/ARC antenna is a combined VHF/UHF airborne communications antenna designed for usage at airspeeds of less than Mach 1. The antenna housing is fiberglass epoxy, designed to withstand the exposure to sand and dust particles of desert areas and is foam-filled to reduce the effect of extreme temperature changes, extreme humidity, and excessive shock and vibration. The antenna is produced to Military Specification MIL-A-55680 and has continuous operation altitudes of up to 50,000 ft and temperatures between -65°F and 131°F. The antenna can withstand the impact shock of 30g and the steady-state acceleration of 6g. The isolation between the bands is > 40 dB. A gasket for RF shielding and positive sealing is included. The antenna is coated with a Skydrol resistant lusterless CARC black paint.

Specifications

• Weight
  : 3.5 lb
• Height
  : 14.56 in
• Frequency
  : 116 – 152 MHz 225 – 400 MHz
• Impedance
  : 50 Ohms Nominal
• Gain
  : -6 dBd Minimum
• VSWR
  : 3.0:1 Maximum
• Polarization
  : Vertical
• Pattern
  : Omnidirectional
• Connector
  : VHF- BNC (Female) UHF- TNC (Female)
• RF Power Capacity:
  50 Watts CW
• Color
  : CARC Black

Product Codes

• Mfr Part No
  AT-1108/ARC
• MIL SPEC
  MIL-A-55680
• ECCN
  7A994
• MIL SPEC
  MIL-A-55680
• NSN
  5985-01-079-8214
• SCHEDULE B CODE
  8529.10.4000
