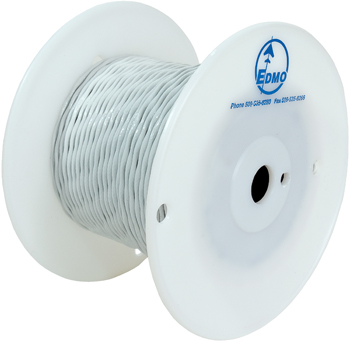

M27500-22TG2V64 Double Extruded White ETFE Wire | 22 AWG, 2 Conductor

Product Description

M27500 specification provides for a wide range of construction options allowing for optimal performance in virtually any environment. Any number of design components are available for users to choose from — including conductor size, number of conductors, insulation type, shield material (or no shield), circuit identification, and single or double walled jacket. This AS22759 wire has a fluoropolymer–insulation and single-conductor offering high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles and areas requiring overload stability, low smoke emission, and fire resistance such as aircraft cabins.

SAE AS22759/18 is made of special extruded ETFE insulation covering a tin-plated copper conductor. It is light-weight and provides the mechanical toughness and durability suitable for extreme aerospace, military, and commercial environments.  Meeting the M27500 specifications, its low voltage and high temperature properties makes this wire & cable ideal for both military and commercial applications — including airframes, avionics, and ground support equipment.

This 27500-22TG2V64 double extruded white ETFE wire (EDMO# 22TG2V64) meets SAE AS22759/18 specifications and has two tin-plated copper conductors and a double extruded ETFE jacket. Rated for 150°C and 600 volts.

Specifications

• Approx Weight:
  12 lb/mft
• Gauge:
  22 AWG
• Inner Connector:
  SAE AS22759/18
• Number of Conductors:
  2
• Conductor Stranding:
  19/34
• Jacket Type:
  Double extruded white ETFE
• Shield Type:
  Double tin-plated copper, Round
• Temperature Rating:
  150°C
• Voltage Rating:
  600 V

Product Codes

• Mfr Part No
  M27500-22TG2V64
• MIL SPEC
  M27500-22TG2V64
• ECCN
  EAR99
• MIL SPEC
  M27500-22TG2V64
• SCHEDULE B CODE
  8544.11.0030
