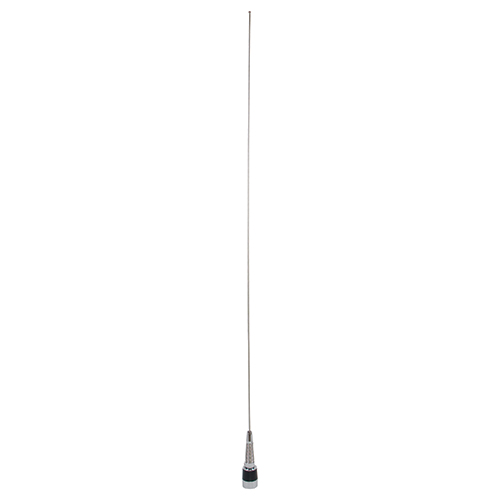

AV-7 VHF Communications Vehicle Antenna | 118–137 MHz, Fixed Base
Product Description
The AV-7 is a high-performance vehicular antenna for use on all surface vehicles where communications on the aircraft VHF COM frequency band are required. It features heavy-duty construction with a tapered 17-7PH stainless steel whip and spring mount. All exposed fittings are chrome-plated brass or stainless steel.
Mounting is easily achieved on rooftop, cowl, fender or other suitable location via a fixed “NMO” base. The antenna comes pre-tuned to operate in the aircraft VHF COM frequency band of 118-137 MHz and can be purchased as a complete package or separate antenna and mounting base.
This AV-7 Antenna (EDMO# AV-7F) has a fixed-mount base, 17-ft cable with BNC connector not attached.
Features
- Designed for use on ground vehicles
- 118–137 MHz frequencies
- Vertical polarization
- Omni-directional pattern
- 50 Ω impedance
- Fixed-mount base, 17-ft cable with BNC connector not attached
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Max Height:
45 in
Application:
Ground Vehicular VHF COM
Frequency:
118 – 137 MHz
Impedance:
50 Ohms Nominal
VSWR:
1.5:1 Maximum at Resonance
Polarization:
Vertical
Pattern:
Omni-directional
Connector:
BNC Male (not attached)
17 ft cable
RF Power Capacity:
150 Watts
Product Codes
- Mfr Part No:AV-7F
- EDMO #:AV-7F
- Brand:RAMI
- Category:Antennas & Couplers
- ECCN:7A994
- SCHEDULE B CODE:8529.10.4000
