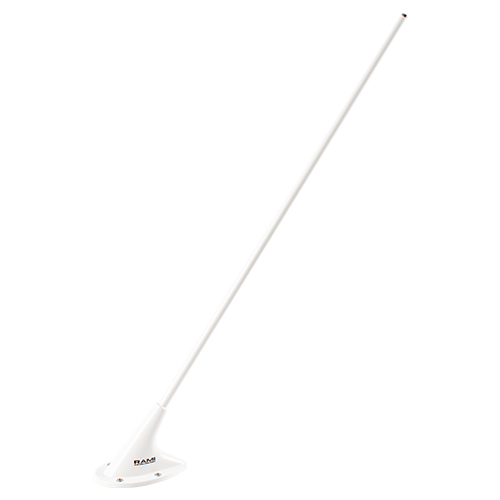

AV-10 VHF Communications Whip Antenna | 118–137 MHz, White

AV-10 VHF Communications Whip Antenna | 118–137 MHz, White

RAMI

Call For Pricing
In stock
EDMO # AV-10
MFR Part # AV-10
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV-10 is a communications antenna designed for high-performance aircraft applications. It exhibits excellent electrical characteristics and incorporates an efficient aerodynamic 4-bolt mounting base. The antenna essentially matches the styling of the communication antennas currently used on most singles and light twins. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 2.70 lbs @ 250 mph.

This AV-10 VHF Communications Whip Antenna (EDMO# AV-10) is white in color.

Features

  • 118–137 MHz frequencies
  • Vertical polarization
  • Omnidirectional pattern
  • 50 Ω impedance
  • BNC connector
  • Backed by the RAMI Limited Lifetime Warranty

Also Purchased

Specifications

  • Weight:
    8 oz
  • Height:
    20.25 in.
  • Frequency:
    118–137 MHz
  • Impedance:
    50Ω nominal
  • VSWR:
    2.0:1 maximum
  • Polarization:
    Vertical
  • Pattern:
    Omni-Directional
  • Connector:
    BNC female
  • RF Power Capacity:
    30 Watts
  • Color:
    White
  • FAA Approvals:
    TSO-C37d, TSO-C38d

Related Products

Product Codes

  • Mfr Part No
    AV-10
  • ECCN
    7A994
  • PROAPP
    PT2530CE
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C37d,C38d
