AV-586 Antenna Coupler | NAV/LOC/GS
Product Description

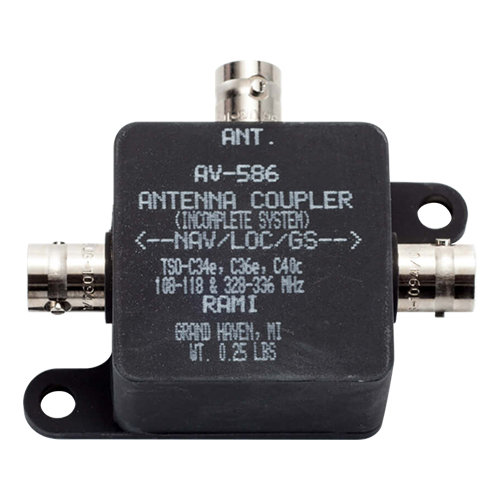

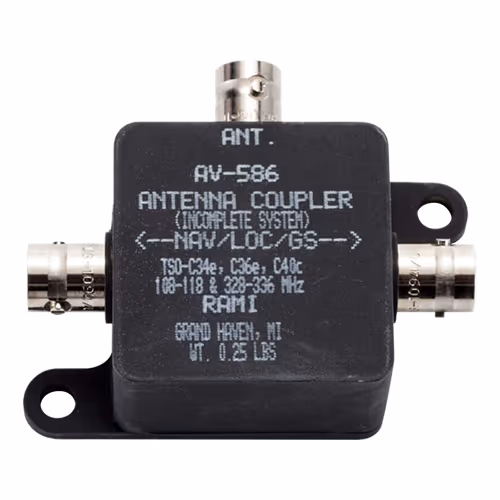

The AV-586 antenna coupler is a signal splitter providing two outputs from a single antenna. Newer designed navigational radios have only one antenna input to receive all three (VOR/LOC/GS) signals whereas older legacy radios had a separate antenna input for the VOR/LOC signal and another antenna input for the GS signal. In an aircraft instrument panel with two newer navigational radios, the AV-586 is the article that will provide the necessary signals to both radios utilizing a single antenna.
Features
- Provides two outputs from a single antenna
- 50 Ω impedance
- BNC female connectors
- Receive only
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Max. Weight:
0.25 lb
Application:
Navigation Receive
Frequency:
Port 1: Antenna
Port 2: NAV/LOC/GS
Port 3: NAV/LOC/GS
Impedance:
50 Ohms Nominal
VSWR:
1.40:1 Max.
Insertion Loss:
Less than .6 dB above 3.0 dB
Isolation:
Greater than 22 dB
Connectors:
BNC Female
RF Power Capacity:
Receive Only
Color:
Black
FAA Approvals:
TSO-C34e, TSO-C36e, TSO-C40e
Product Codes
- Mfr Part No:AV-586
- EDMO #:AV-586
- Brand:RAMI
- Category:Antennas & Couplers
- ECCN:7A994
- SCHEDULE B CODE:8529.10.400
- TSO:C34e, C36e, C40c
