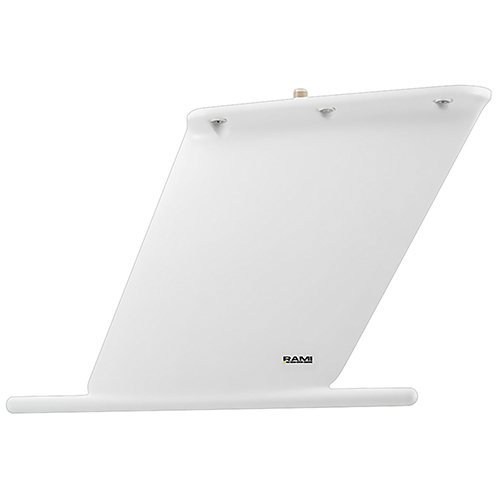

AV-924 FM Antenna | 136–174 MHz, 380–520 MHz, 760–870 MHz


RAMI

Call For Pricing
Available to order
EDMO # AV-924HS
MFR Part # AV-924HS
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV-924HS antenna was developed to be used with airborne FM transceivers typically used in first responder type aircraft providing a single antenna solution for the multi-band transceivers. This antenna operates at VHF and UHF frequencies. It meets DO-160G, section 8, Category U requirements for robust vibration, and is qualified for installation on helicopters with unknown related rotor frequencies.

Features

  • Developed to be used with airborne FM transceivers
  • Operates at VHF and UHF frequencies
  • 136 to 174 MHz, 380 to 520 MHz, 760 to 870 MHz frequency ranges
  • Vertical polarization
  • 6-hole mount
  • TNC female connector
  • Gloss white finish
  • Backed by the RAMI Limited Lifetime Warranty

Also Purchased

Specifications

  • Application
    : Airborne communications
  • Frequency
    : 136 to 174 MHz 380 to 520 MHz 760 to 870 MHz
  • Impedance
    : 50Ω
  • VSWR
    : 3.0:1, maximum
  • Polarization
    : Vertical
  • Connector:
    TNC female
  • Pattern:
    Omni-directional
  • RF Power Capacity:
    10 watts VHF, maximum 10 watts UHF, maximum
  • Color:
    Gloss white

Related Products

Product Codes

  • Mfr Part No
    AV-924HS
