N48-1 Series Balanced Loop Antenna | VOR/LOC, 108-118 MHz

N48-1 Series Balanced Loop Antenna | VOR/LOC, 108-118 MHz

HARRIS CORP

Call For Pricing
Available to order
EDMO # DM N48-1
MFR Part # N48-1
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

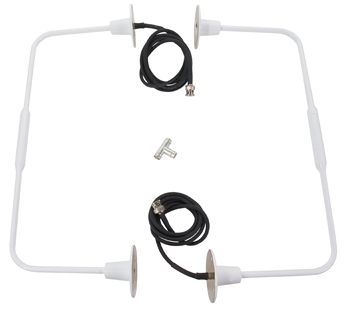

The N48 Series balanced loop design assures an omnidirectional radiation pattern at the horizon to obtain the maximum signal for standard VOR and area navigation systems installed in lightweight aircraft, medium twins, and helicopters operating up to 250 mph.

The N48-1 includes two (2) each DM N48-1-2 towel bars with coax cables.

Features

  • 108-118 MHz frequency range
  • Balanced loop design
  • For aircraft operating up to 250 mph
  • Omnidirectional radiation pattern
  • Horizontal polarization

Also Purchased

Tinnerman Clip | 6-32

Tinnerman Clip | 6-32

EDMO DISTRIBUTORS, INC

Available to order

EDMO#: S10233-3B

MFR#: C8095-632-3B

Call For Pricing

Specifications

  • Weight:
    1.12 lb
  • Connector:
    BNC (Male)
  • DC Resistance:
    Open Circuit
  • Finish:
    White Polyurethane
  • Frequency Range:
    108 - 118 MHz
  • VSWR:
    5.0:1
  • Impedance:
    50 Ω
  • Polarization:
    Horizontal
  • Radiation Pattern:
    Omnidirectional

Related Products

Product Codes

  • Mfr Part No
    N48-1
  • ECCN
    7A994
  • SCHEDULE B CODE
    8526.10.0010
