CI-205-3 VOR/LOC/GS Towel Bar Antenna Set | 108–118 MHz & 329–335 MHz, 50 Ω, BNC Female

Product Description

The CI-205-3 is an eight-through-hole-mount style VOR/LOC/GS towel bar antenna set with BNC ports. This antenna set provides a single coax cable run to the avionics location and features a low weight and low drag structure that minimizes helicopter rotor down wash forces. It is suitable for mounting on the vertical stabilizer or tail boom on light fixed-wing single-engine and multi-engine aircraft and helicopters.

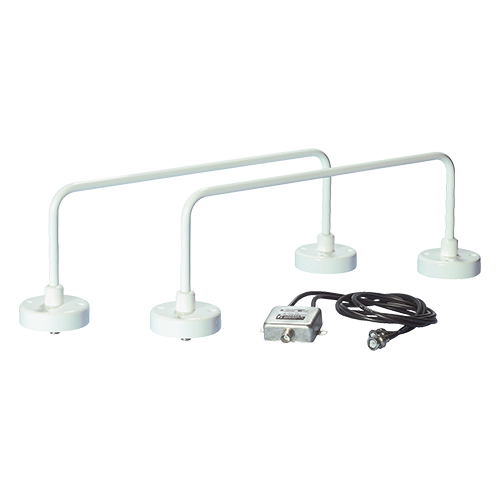

The CI-205-3 antenna set (EDMO# CI-205-3) includes two towel bar style sensor elements, each with a BNC output connector; one signal combiner to single output with BNC connector; and embedded coax cables.

Specifications

• Weight:
  1.75 lb
• Height:
  5.25 in
• Frequency:
  108–118 MHz (VOR/LOC) 329–335 MHz (GS)
• VSWR:
  5.0:1
• Polarization:
  Horizontal
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• RF Power:
  Receive Only
• Material:
  Delrin Mounts/Aluminum Towel Bar
• Finish:
  White Polyurethane Enamel
• Connector:
  BNC (female)
• Temperature Range:
  -55ºC to 8 5ºC
• Altitude:
  55,000 ft
• Mounting:
  Eight-hole (each antenna)
• FAA TSO:
  C34c, C36c, C40a
• RTCA Environmental:
  DO-160D

Product Codes

• Mfr Part No
  CI 205-3
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34c,C36c,C40a

Documentation

• CI 205-3 Data Sheet
• CI 205-3 Product Drawing
