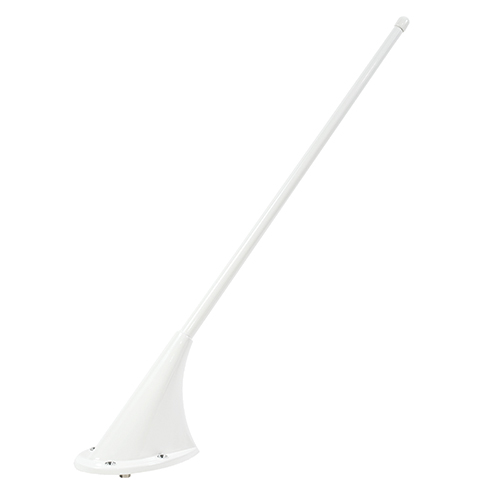

110-338 Tri-Band ELT Rod Antenna | 121.5/243/406MHz, White

110-338 Tri-Band ELT Rod Antenna | 121.5/243/406MHz, White

ACR ELECTRONICS / ARTEX

Call For Pricing
In stock
EDMO # 110-338
MFR Part # 110-338
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 110-338 antenna uses Artex Tri-Band technology to provide signal on 121.5, 243, and 406 MHz. This antenna is equipped with a single BNC connector for installations that require a single connector setup. Constructed with a durable, glass-reinforced polyester housing.

Features

  • White
  • Tri-Band technology
  • 121.5, 243, and 406 MHz frequencies
  • Vertical polarization
  • Omni-directional radiation pattern
  • Tough glass reinforced polyester housing
  • Designed to meet the Eurocae ED 62 flame test

Also Purchased

Specifications

  • Weight:
    0.45 lb
  • Height:
    15.50 in.
  • Frequency:
    121.5, 243 & 406 MHz
  • VSWR:
    2.0:1 - 121.5/243 MHz, 1.5:1 - 406 MHz
  • Polarization:
    Vertical
  • Radiation Pattern:
    Omni-directional
  • Impedance:
    RF 50 OHMS (nominal)
  • Material:
    Molded radome/fiberglass whip
  • Finish:
    Polyurethane enamel
  • Connector:
    BNC (female)
  • Temperature:
    -55˚ C to + 85˚ C
  • Altitude:
    50,000 ft
  • Color:
    White

Related Products

Product Codes

  • Mfr Part No
    110-338
  • ECCN
    7A994
  • PROAPP
    PT1113CE / PQ1113CE
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C126 THIS PART IS A SUBCOMPONENT OF AN FAA TSOA ARTICLE.
