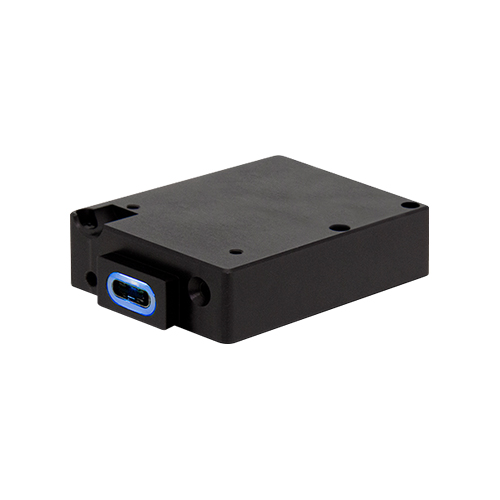

TA360-CL MAX Power USB Charger | USB-C PD, 100W, Lighted, Starlink® Mini Compatible

Product Description

Upgrade your aircraft with the only TSO-certified Starlink® Mini compatible USB chargers. TA360 MAX Power USB Chargers are the most powerful in aviation, delivering up to 100 watts per port to your Starlink® Mini system, EFB, laptop, tablet or smartphone. MAX Chargers feature cutting-edge Power Delivery (PD) Technology and are easy to install in your cabin, cockpit or galley. They are a drop-in replacement for True Blue Power TA102 and TA202 Series charging ports.

Specifications

• Weight:
  1.0 ounces (28 grams)
• Dimensions:
  1.5 x 0.52 x 2.0 in
• Input Voltage:
  22 – 32 VDC
• Input Power:
  100 W per port (maximum)
• Output Voltage:
  USB-C PD; 5 – 20 VDC per port (variable)
• Output Power:
  USB-C PD; 100 W per port (maximum)
• Output Current:
  5.0 amps per port
• USB Connector:
  Single USB-C PD configuration
• Mating Connector Kit:
  MCI P/N 9017960 (included)
• Mounting:
  Front or rear; faceplates and adapter plates (optional)
• Installation:
  In-seat, cabin, cockpit and galley
• Case:
  Anodized aluminum, black
• Certification:
  FAA TSO C71 EASA ETSO C71 RTCA DO-160G

Product Codes

• Mfr Part No
  6430360-37
• SCHEDULE B CODE
  8504.40.9580
