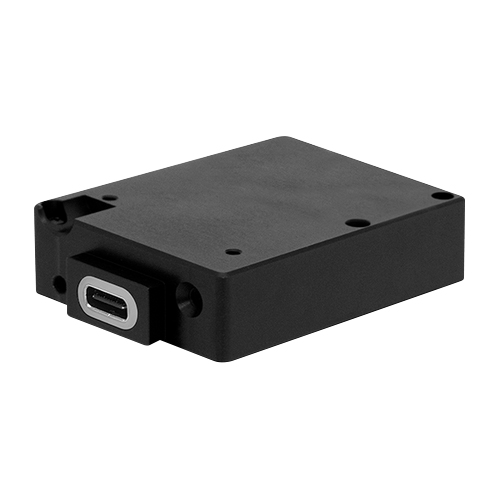

TA360-CD MAX Power USB Charger | USB-C PD, 100W, Non-Lighted, Data Passthrough

TA360-CD MAX Power USB Charger | USB-C PD, 100W, Non-Lighted, Data Passthrough

    MID-CONTINENT INSTRUMENTS AND AVIONICS

    Call For Pricing
    In stock
    EDMO # 6430360-67
    MFR Part # 6430360-67
    Need help placing an order? Call 800-235-3300 or Contact us

    Product Description

    Upgrade your aircraft with the most powerful USB chargers in aviation. The True Blue Power MAX Power TA360 features the latest USB-PD Technology and delivers up to 100 watts of power per port. Now with USB 2.0 data passthrough, this single, USB-C PD charger features a rear connector and is compatible with USB-C PD and traditional USB-C devices. This MAX Power USB charger is TSO certified.

    Features

    • Provides 5.0 amps
    • 22 – 32 VDC input voltage
    • Delivers up to 100 watts of power
    • Single, USB-C PD connector with data passthrough
    • USB 2.0 data passthrough
    • Compatible with USB-C PD and traditional USB-C devices
    • Short circuit, power surges, overload and over temperature protection
    • In-seat, cabin, cockpit and galley applications

    Specifications

    • Weight:
      1.3 ounces (37 grams)
    • Dimensions:
      1.5 x 0.52 x 2.0 in
    • Input Voltage:
      22 – 32 VDC
    • Input Power:
      100 W per port (maximum)
    • Output Voltage:
      5 – 20 VDC per port (variable)
    • Output Power:
      100 W per port (maximum)
    • Output Current:
      5.0 amps per port
    • Data Speed:
      480 Mbps (maximum)
    • USB Connector:
      Single USB-C PD
    • Mating Connector Kit:
      MCI P/N 9017960, 9017960-1 (included)
    • Mounting:
      Front or rear; faceplates and adapter plates (optional)
    • Installation:
      In-seat, cabin, cockpit and galley
    • Case:
      Anodized aluminum, black
    • Certification:
      FAA TSO C71 EASA ETSO C71 RTCA DO-160G

    Product Codes

    • Mfr Part No
      6430360-67
    • SCHEDULE B CODE
      8504.40.9580
