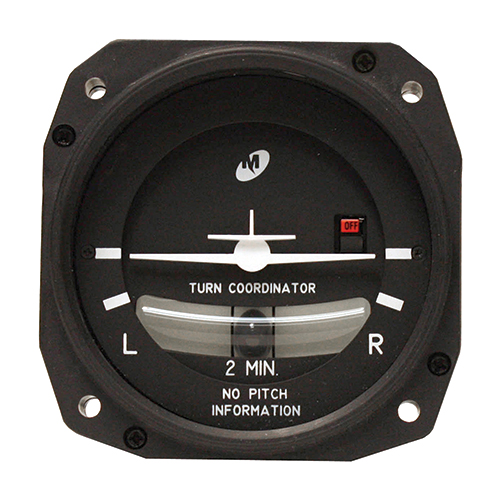

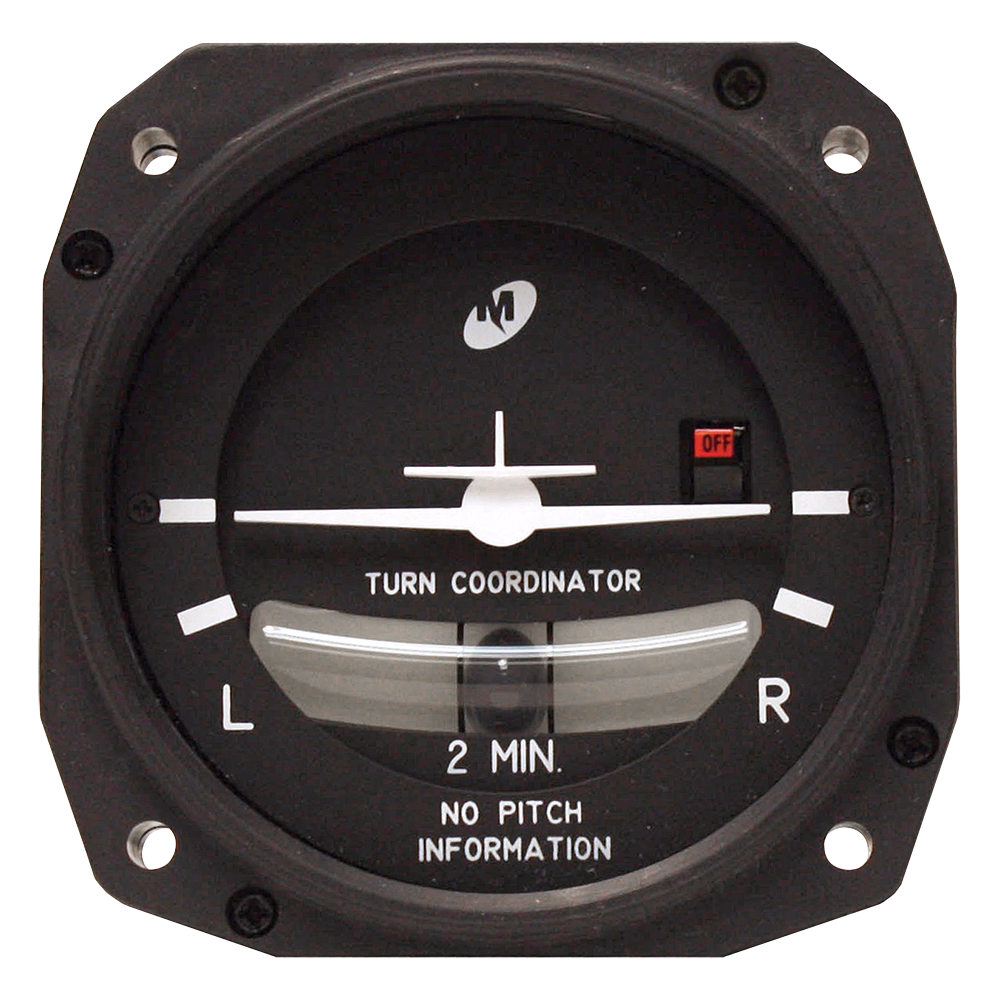

1394T100 Turn Coordinator | 11-32V, 3-Pin, Lighted, Brushless
Product Description
The 1394T Series Turn Coordinator displays the rate of turn, quality and coordination of the turn, and roll information. Measurements are made relative to the strength of the force of gravity and the force of inertia caused by a turn.
Version (EDMO# 1394T1003B) operates on 11-32V with a 3-pin connector, has a lighted bezel and brushless rotor.
Features
- 4,500 hours MTBF
- Standard 2–minute turn indication
- 11 – 32V input voltage range
- 0.80A max starting, 0.35A running
- Lighted bezel
- White inclinometer background with black ball
- HEA non-glare glass (when specified)
- Compact 3 1/8"" size fits standard panel cutout
- Front or rear panel mount
- FAA TSO certified to C3b
Specifications
Weight:
1.4 lb
Dimensions:
3.25 x 3.25 x 5 in.
MTBF:
4,500 Hours
Turn Indication:
Standard 2–minute turn
Operating Temperature:
-30°C to + 50°C
Operating Altitude:
-1,000 ft. to 35,000 ft.
Input Voltage Range:
11 – 32V
Rotor Type:
AC
Power Consumption:
0.80A max starting, 0.35A running
Bezel:
Lighted
Glass:
HEA non-glare (when specified)
Mounting:
3-1/8 in. front or rear panel
Inclinometer Ball Color:
Black
Inclinometer Background Color:
White
Connector:
3-pin
Certification:
FAA TSO certified to C3b
Product Codes
- Mfr Part No:1394T100-3B
- EDMO #:1394T1003B
- Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
- Category:Clocks & Instruments
- ECCN:EAR99
- SCHEDULE B CODE:9014.20.6000
- TSO:C3b
