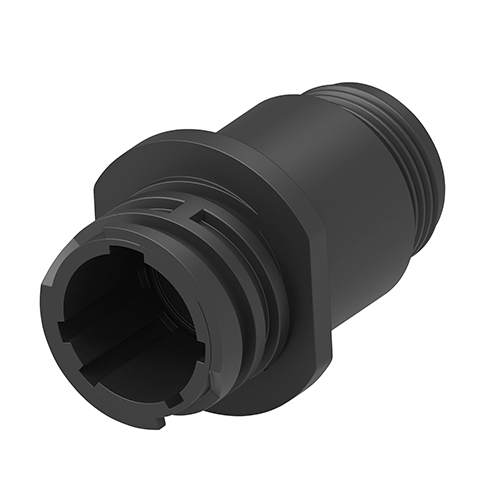

Series 1 CPC Connector Receptacle | Size 11 Shell, 4-Position, Free-Hanging, Nylon

Series 1 CPC Connector Receptacle | Size 11 Shell, 4-Position, Free-Hanging, Nylon

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 206153-1
MFR Part # 2061531
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Series 1 CPC connectors are constructed with thermoplastic material providing a flammability rating of UL 94 V-0.

This circular connector receptacle (EDMO# 206153-1) features a size 11 shell size, 4 contact positions, and is a free-hanging mounting receptacle. Nylon construction.

Features

  • Height:
  • 20.75 mm
  • Diameter:
  • 17.45 mm
  • Connector Type:
  • standard circular connector series 1
  • Housing Material:
  • thermoplastic (TP)
  • Mating Style:
  • threaded
  • Mounting Angle:
  • straight
  • Mounting Style:
  • free angle
  • Number of Positions:
  • 4 position
  • Shell Material:
  • nylon
  • Shell Size:
  • 11
  • Shell Style:
  • receptacle
  • Thread Size:
  • 5/8-24
  • Flammability Rating:
  • UL 94 V-0

Also Purchased

Specifications

  • Free-Hanging mounting style CPC receptacle
  • Series 1 CPC circular connector
  • Uses Type III+, high current power, Type II and subminiature coax contacts

Related Products

Product Codes

  • Mfr Part No
    2061531
  • CSA
    LR7189
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.90.4000
  • UL
    E28476
