TA360-CA MAX Power USB Charger | Dual USB-C PD/USB-A, 100W/15W, Non-Lighted, Starlink® Mini Compatible

TA360-CA MAX Power USB Charger | Dual USB-C PD/USB-A, 100W/15W, Non-Lighted, Starlink® Mini Compatible

    MID-CONTINENT INSTRUMENTS AND AVIONICS

    Call For Pricing
    Available to order
    EDMO # 6430360-21
    MFR Part # 6430360-21
    Need help placing an order? Call 800-235-3300 or Contact us

    Product Description

    Upgrade your aircraft with the only TSO-certified Starlink® Mini compatible USB chargers. TA360 MAX Power USB Chargers are the most powerful in aviation, delivering up to 100 watts per port to your Starlink® Mini system, EFB, laptop, tablet or smartphone. MAX Chargers feature cutting-edge Power Delivery (PD) Technology and are easy to install in your cabin, cockpit or galley. They are a drop-in replacement for True Blue Power TA102 and TA202 Series charging ports.

    Features

    • Simultaneously provides 3.0 amps (USB-A) and 5.0 amps (USB-C PD)
    • 22 – 32 VDC input voltage
    • Delivers up to 100 watts of power per PD port
    • Dual, USB-C PD / USB-A connectors
    • Compatible with USB-C PD, traditional USB-C and USB-A devices
    • Charge two devices simultaneously at maximum power
    • Short circuit, power surges, overload and over temperature protection
    • In-seat, cabin, cockpit and galley applications
    • Designed and built in Wichita, Kansas, USA
    • Limited lifetime warranty

    Also Purchased

    Specifications

    • Weight:
      1.8 oz (51 g)
    • Dimensions:
      1.5 x 1.03 x 2.0 in
    • Input Voltage:
      22-32 VDC
    • Input Power:
      USB-C PD: 100 W per port (max) USB-A: 18 W per port (max)
    • Output Voltage:
      USB-C PD: 5-20 VDC per port (variable) USB-A: 5 VDC ± 0.25 per port
    • Output Power:
      USB-C PD: 100 W per port (max) USB-A: 15 W per port
    • Output Current:
      USB-C PD: 5.0 amps per port USB-A: 3.0 amps per port
    • USB Connector:
      Dual USB-C PD and USB-A configuration
    • Mating Connector Kit:
      MCI P/N 9017960 (included)
    • Mounting:

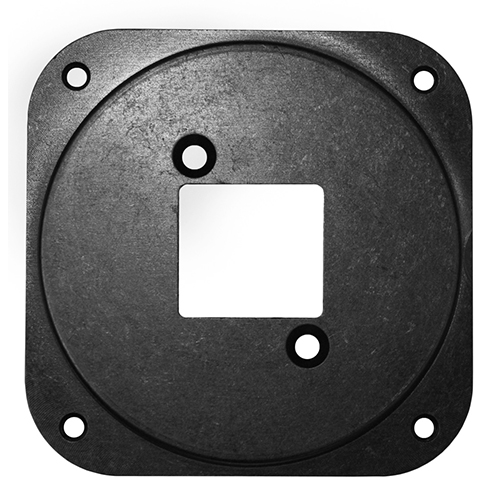

      Front or rear; faceplates and adapter plates (optional)
    • Installation:
      In-seat, cabin, cockpit, and galley
    • Case:
      Anodized aluminum, black
    • Certification:
      FAA TSO C71, EASA ETSO C71, RTCA DO-160G

    Product Codes

    • Mfr Part No
      6430360-21
    • SCHEDULE B CODE
      8504.40.9580
