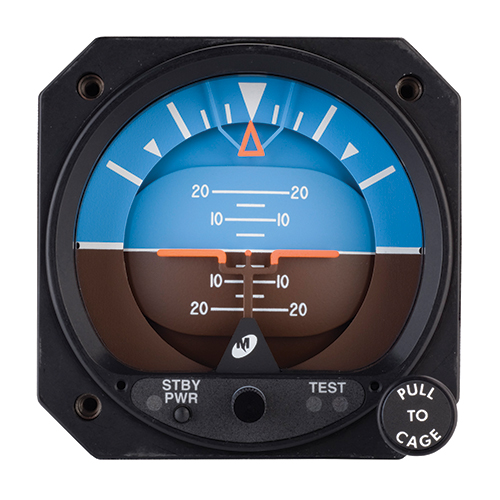

Model 4300 Attitude Indicator | 3-1/8in, Electric, Lifesaver Gyro, Rotating Roll, Traditional, 10-32 VDC, 10º Tilt, 28 VDC Lighting

Select an option

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

Available to order

EDMO # 4300-41110

MFR Part # 4300-411

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Model 4300 Electric Attitude Indicator incorporates a moving display that simulates the earth’s horizon and provides the pilot with a real time visual indication of the aircraft pitch and roll attitude relative to the indicator symbolic airplane.

Version (EDMO# 4300-41110) is a 3-1/8 inch 10-32 VDC electric attitude indicator with Lifesaver Gyro, rotating roll, traditional symbolic aircraft, 10º tilt, and 28V lighting.

Features

A safe alternative to unreliable vacuum systems
Ideal primary or standby artificial horizon in fixed-wing and helicopter applications
Single 4-pin connector installation
7,500 hours MTBF — more than double the life of most electric gyros
10–32 volt DC operation for use in both 14 and 28 volt aircraft
Field-replaceable lighting
Anti-reflective glass enhances visibility and reduces pilot fatigue
FAA TSO-C4c certified and RTCA DO-160D qualified
DO-160 qualified for helicopter vibration

Specifications

Weight:

2.7 lbs. Length: 6.6 inches
MTBF:

7,500 Hours Certification: FAA TSO-C4c RTCA/DO-160D Power Input: 10–32 VDC: 1400 mA start, 600 mA max at 14 VDC input 700 mA start, 300 mA max at 28 VDC input Annunciators: STBY PWR (standby power mode) TEST (battery test — red/green) Lighting: 28 VDC Incandescent Glass: Special HEA anti-reflective coating Mounting: Rear mount in standard 3 1/8” round panel cutout Temperature Range: –30°C to +70°C (–22°F to +158°F) Mating Connector: Mid-Continent P/N 9015514 (MS3116F8–4S) Panel Tilt: Aircraft specific — calibrated at factory Specify exact tilt between 0° to 20° when ordering Dial: Rotating roll dial, traditional symbolic airplane
