N Male Connector | Right Angle, Crimp/Solder

Product Description

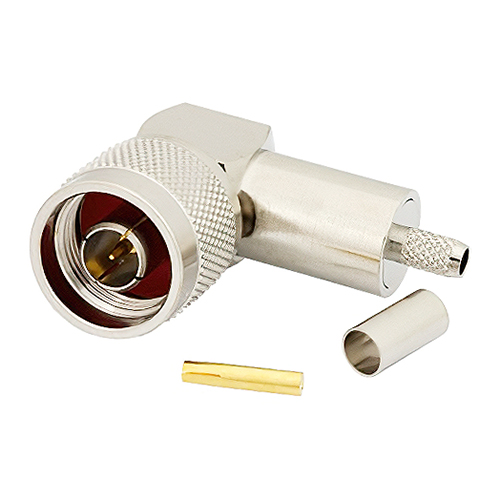

The PE4484 N male connector features a crimp/solder attachment for RG55, RG141, RG142, RG223, and RG400 coaxial cable. The connector operates up to a maximum frequency of 1000 MHz and offers VSWR of 1.5:1. This N connector has a brass body with nickel plating and uses a gold-plated brass contact.

Specifications

• Weight:
  0.127 lb (57.61 g)
• Dimensions:
  1.8 x 1.29 in (45.72 x 32.77 mm)
• Body Geometry:
  Right angle
• Connect Interface Types:
  RG55, RG141, RG142, RG223, RG400
• Contacts:
  Gold-plated brass contact
• Minimum Contact Plating:
  30 µ-in

Product Codes

• Mfr Part No
  PE4484
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.69.4010
