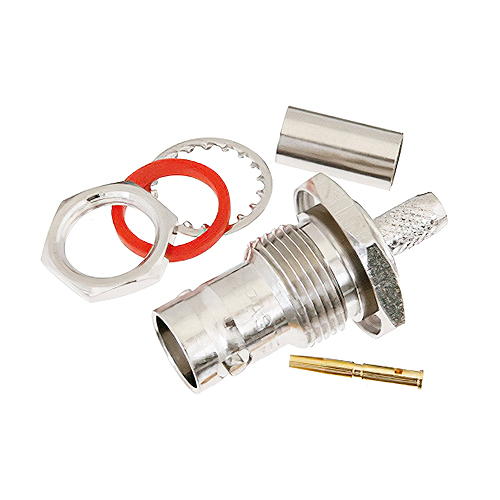

PE4209 BNC Female Bulkhead Mount Crimp/Solder Attachment | 1.5:1 VSWR, 4 GHz, MIL-STD-348A

Product Description

The PE4209 BNC female bulkhead mount connector features a crimp/solder attachment for attaching RG55, RG142, RG223, RG400 and RG141 coax compliant. This connector offers offer a maximum VSWR 1.5:1 up to 4 GHz and is MIL-STD-348A compliant.

Specifications

• Weight:
  0.043 lb (19.5 g)
• Dimensions:
  1.43 x 0.689 in (36.32 x 17.50 mm)
• Frequency Range:
  DC – 4 GHz
• VSWR:
  1.5:1
• Operating Voltage:
  500 Vrms AC
• Contact Material:
  Gold-plated brass
• Insulation Material:
  PTFE
• Body Material:
  Nickel-plated brass
• Crimp Sleeve Material:
  Nickel-plated brass
• Washer Material:
  Nickel-plated steel
• Operating Temperature:
  -65°C to 165°C

Product Codes

• Mfr Part No
  PE4209
• SCHEDULE B CODE
  8536.69.4010
