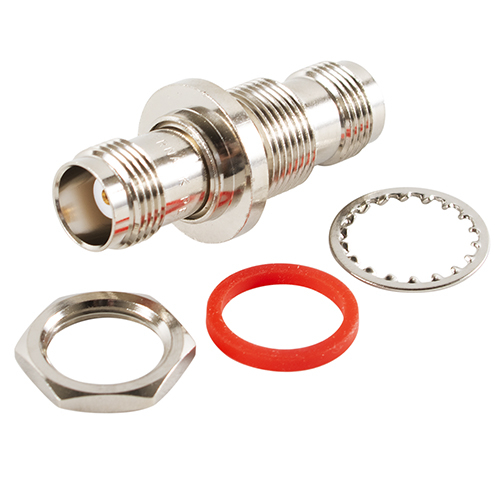

TNC to TNC Female Bulkhead Connector | Hermetically Sealed

PASTERNACK

Call For Pricing

Available to order

EDMO # PE9154

MFR Part # PE9154

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

PE9154 is a hermetically sealed bulkhead connector with TNC female connectors at both ends. The connector operates up to a maximum frequency of 6 GHz and offers VSWR of 1.3:1. This TNC connector has a brass body with nickel plating and uses a gold-plated brass contact.

Features

TNC to TNC female connector
MIL-STD-348
50Ω impedance
6 GHz Max. operating frequency
VSWR 1.3:1
Gold-plated brass contact
Applications include General purpose test, Vacuum Test Environment, and rack-mounted equipment

Also Purchased

Specifications

Weight:

0.052 lb (23.59 g)
Dimensions:

1.555 x 0.689 x 0.689 in (39.5 x 17.5 x 17.5 mm)
Connectors:

TNC female (both connectors)
Impedance:

50Ω
VSWR:

1.3:1
Frequency Range:

6 GHz, maximum
Operating Voltage:

500 Vrms
Specification

Hermetically Sealed
Body Geometry:

Straight
Mounting:

Bulkhead
Contact Plating:

Gold-plated brass (MIL-G-45204)
Outer Conductor:

Nickel-plated brass (QC-N-290)
Application:

General purpose test Vacuum Test Environment Rack mounted equipment
