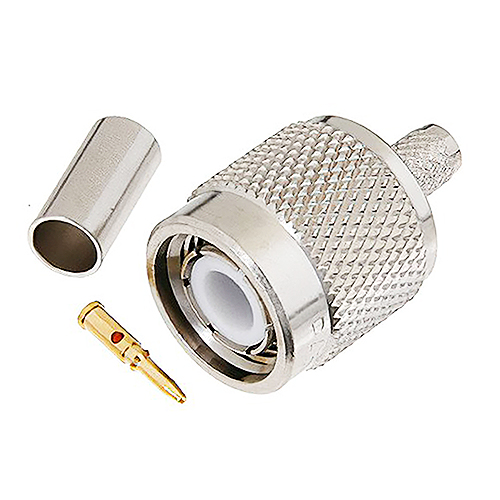

TNC Male Connector | Straight, Crimp/Crimp


PASTERNACK

CALL FOR PRICING
In Stock
EDMO#PE4047
MFR#PE4047

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The PE4047 TNC male connector features a crimp/crimp attachment for RG55, RG142, RG223, RG400, and RG141 coaxial cable. The connector operates up to a maximum frequency of 6 GHz and offers VSWR of 1.5:1. This TNC connector has a brass body with nickel plating and uses brass contact.

Features

  • TNC male connector
  • MIL-STD-348A
  • 50Ω impedance
  • 6 GHz Max. operating frequency
  • VSWR 1.5:1
  • Gold-plated brass contact

Specifications

Weight:
0.033 lb (14.97 g)

Dimensions:
1.097 x 0.571 in (27.86 x 14.5 mm)

Body Geometry:
straight

Connect Interface Types:
RG55, RG142, RG223, RG400, RG141

Contacts:
gold-plated brass contact

Minimum Contact Plating:
30 µ-in

Product Codes

  • Mfr Part No:PE4047
  • EDMO #:PE4047
  • Brand:PASTERNACK
  • Category:Electrical Interconnect
