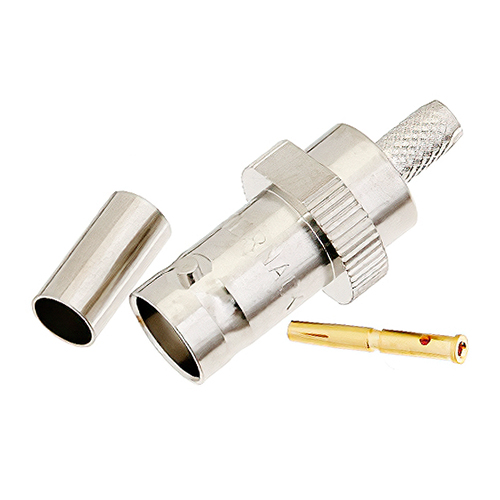

BNC Female Connector | Straight, Crimp/Solder


PASTERNACK

CALL FOR PRICING
In Stock
EDMO#PE4397
MFR#PE4397

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The PE4397 BNC female connector features a crimp/solder attachment for RG55, RG141, RG142, RG223, and RG400 coaxial cable. The connector operates up to a maximum frequency of 4 GHz and offers VSWR of 1.3:1. This BNC connector has a brass body with nickel plating and uses a gold-plated brass contact.

Features

  • BNC male connector
  • MIL-STD-348A
  • 50Ω impedance
  • 4 GHz Max. operating frequency
  • VSWR 1.3:1
  • Gold-plated brass contact

Specifications

Weight:
0.027 lb (12.25 g)

Dimensions:
1.24 x 0.571 x 0.5 in (31.5 x 14.5 x 12.7 mm)

Body Geometry:
straight

Connect Interface Types:
RG55, RG141, RG142, RG223, RG400

Contacts:
gold-plated brass contact

Minimum Contact Plating:
30 µ-in

Product Codes

  • Mfr Part No:PE4397
  • EDMO #:PE4397
  • Brand:PASTERNACK
  • Category:Electrical Interconnect
