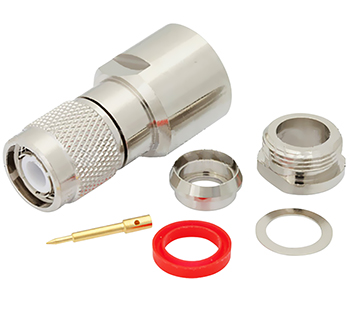

TNC Male Connector | Straight, Clamp/Solder

TNC MALE CONNECTOR CLAMP/Solder Attachment For RG213, RG214, RG8, RG9, RG11, RG225, RG393

PASTERNACK

Call For Pricing
Available to order
EDMO # PE4088
MFR Part # PE4088
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The PE4088 TNC male connector features a clamp/solder attachment for RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG215, and RG216 coaxial cable. The connector operates up to a maximum frequency of 11 GHz and offers VSWR of 1.3:1. This TNC connector has a brass body with nickel plating and uses brass contact.

Features

  • TNC male connector
  • MIL-STD-348A
  • 50Ω impedance
  • 11 GHz Max. operating frequency
  • VSWR 1.3:1
  • Gold-plated brass contact

Also Purchased

Specifications

  • Weight:
    0.01 lb (45.36 g)
  • Dimensions:
    1.7 x 0.75 in (43.18 x 19.05 mm)
  • Body Geometry:
    Straight
  • Connect Interface Types:
    RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG215, RG216
  • Contacts:
    Gold-plated brass contact
  • Minimum Contact Plating:
    30 µ-in

Related Products

Product Codes

  • Mfr Part No
    PE4088
  • ECCN
    ear99
  • SCHEDULE B CODE
    8536.69.4010
