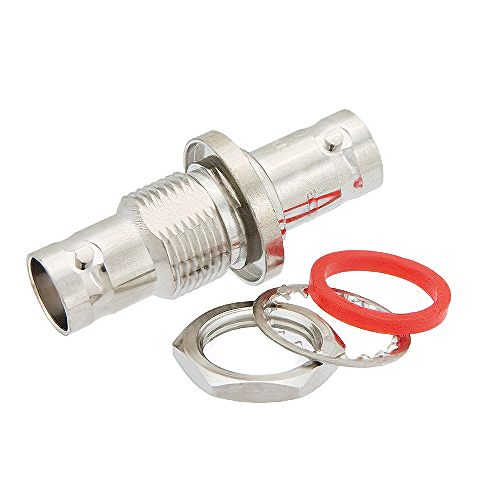

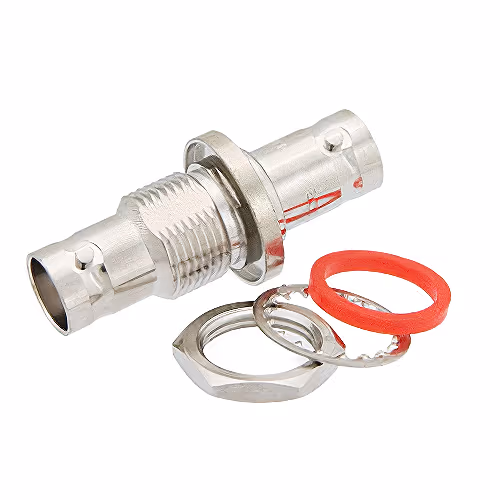

PE9093 BNC to BNC Female Bulkhead Connector | Hermetically Sealed, 50 Ω

Product Description

The PE9093 is a hermetically sealed bulkhead connector with BNC female connectors at both ends. The connector operates up to a maximum frequency of 4 GHz and offers VSWR of 1.5:1. This TNC connector has a brass body with nickel plating and uses a gold-plated brass contact.

Features

BNC to BNC female connector
Hermetically sealed
MIL-STD-348A
50Ω impedance
6 GHz Max. operating frequency
VSWR 1.5:1
Gold-plated brass contact
Applications include general purpose test, vacuum test environment, and rack-mounted equipment

Specifications

Weight:
0.05 lb (22.68 g)

Dimensions:
1.555 x 0.689 x 0.689 in (39.5 x 17.5 x 17.5 mm)

Connectors:
BNC female (both connectors)

Impedance:
50Ω

VSWR:
1.5:1

Frequency Range:
4 GHz, maximum

Operating Voltage:
500 Vrms

Body Geometry:
Straight

Mounting:
Bulkhead

Application:
General purpose test
Vacuum Test Environment
Rack-mounted equipment

Product Codes

Mfr Part No:PE9093
EDMO #:PE9093
Brand:PASTERNACK
Category:Electrical Interconnect
ECCN:EAR99
ECCN:EAR99
SCHEDULE B CODE:8536.69.4010
SCHEDULE B CODE:8536.69.4010
