TNC Male Connector | Right Angle, Clamp/Solder

PASTERNACK

Call For Pricing

Available to order

EDMO # PE4146

MFR Part # PE4146

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

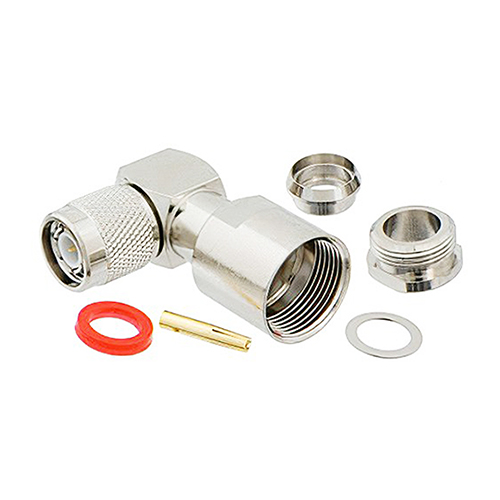

The PE4146 TNC male right angle connector features a clamp/solder attachment for RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG216, and RG215 coaxial cable. The connector operates up to a maximum frequency of 11 GHz and offers VSWR of 1.35:1. This TNC connector has a brass body with nickel plating and uses brass contact.

Features

TNC male connector
MIL-STD-348A
50Ω impedance
11 GHz Max. operating frequency
VSWR 1.35:1
Gold-plated brass contact

Also Purchased

Specifications

Weight:

0.157 lb (71.21 g)
Dimensions:

1.84 x 0.748 x 1.182 in (46.74 x 19 x 30.02 mm)
Body Geometry:

right angle
Connect Interface Types:

RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG216, RG2151
Contacts:

gold-plated brass contact
Minimum Contact Plating:

30 µ-in
