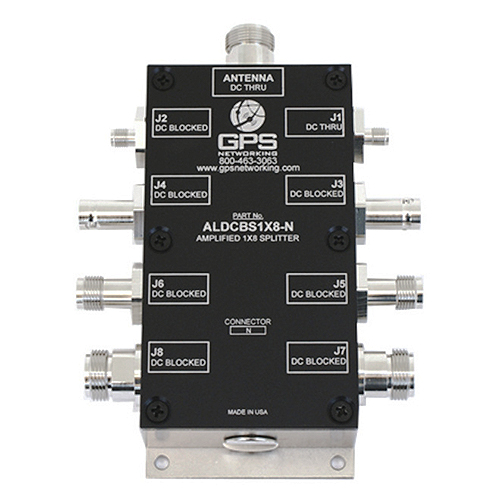

Military High-Isolation Amplified Networked 1x8 GPS Antenna Splitter | 1-input & 8-outputs, TNC Connector

Product Description

This Military Qualified High-Isolation amplified network loaded DC blocked GPS splitter features one input and two outputs for spitting RF frequencies from 1.1 GHz — 1.7 GHz. Each output port (J1–J8) is isolated from external signals to prevent interference. In the standard configuration, the J1 port will pass DC voltage from the connected device and pass power to an antenna or other devices. Ports J2–J8 are DC blocked and loaded with 200Ω resisters for preventing alarm faults. Mil-Specs splitters are qualified to rigorous MIL-STD 810F environmental & MIL-STD-461F EMI standards.

This Mil-Spec amplified, high-isolation GPS amplified splitter (EDMO# MILNHIALD8) includes one input and eight outputs each with TNC connectors, 5-volts network option, and a military DC connector that uses DC voltage from 9–32 VDC.

Specifications

• Weight:
  19.3 oz (547 g)
• Dimensions:
  1.3 x 4.5 x 2.5 in (not including connectors)
• Operating Temperature Range:
  -57°C to 87°C
• Frequency Range:
  1.1 GHz – 1.7 GHz
• Impedance:
  50Ω
• Required Input Voltage:
  3.3 VDC – 15 VDC
• Current Draw:
  17 mA, typical (23 mA, max.)
• Gain:
  3.0 dB – 6.0 dB (4.5 dB, typ.)
• Input SWR:
  2.0:1, typ.
• Output SWR:
  2.0:1, typ.
• Noise Figure:
  L1: 2.9 dB L2: 5.25 dB
• Gain Flatness:
  0.5 dB , typ. (1.5 dB max.)
• Amplitude Balance:
  0.5 dB, typ. (1.5 dB max.) between ports
• Phase Balance:
  12° typical between ports
• Isolation:
  30 dB – 50 dB between ports
• Group Delay Flatness:
  0.25 ns, typ. (1.0 ns max.) between L1 and L2 frequency bands
• Input P1dB:
  -22.7 dBm, 1 dB compression point
• Power Source:
  9 VDC — 32 VDC [customer supplied] MIL-DTL-5015 10SL DC Connector (includes mate)
• Output Voltage:
  5V at 130 mA
• Connector Type:
  TNC female

Product Codes

• Mfr Part No
  MIL-NHIALDCBS1X8-T/5/MC
