GPS-ITS Indoor Testing Solutions

Product Description

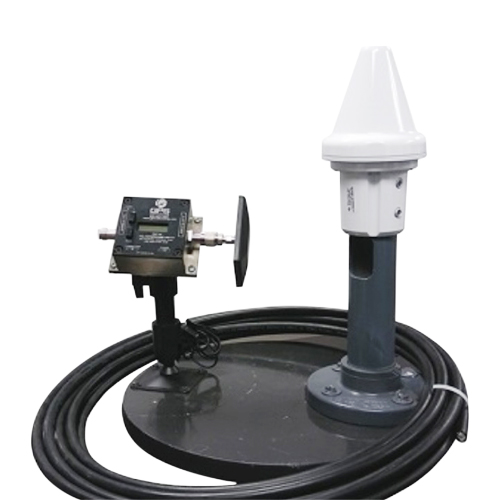

The GPS ITS indoor testing solution allows re-radiation of GPS L1 signals indoors. This kit includes an active roof antenna, a re-radiating amplifier with wall mount and plugin transformer to power the entire system, as well as a passive re-radiating antenna. GPS receivers will be able to receive GPS signals within 100 feet of the re-radiating antenna of line-of-sight.

This product is only to be used for testing GNSS equipment/systems for the purpose of product development or fabrication.

Per the latest FCC guidance, the following use cases are NOT allowed:

• Fire Stations & First Responders
• Aircraft Repair and Maintenance
• Truck Repair and Maintenance
• Any other usages which could be considered "maintenance".

An FCC Experimental Broadcast license is required to operate this device, with the following exceptions:

• Device is operated in a shielded environment, such as an anechoic chamber.
• Device is operated in conjunction with a reradiating hood.
• Device is operated by federal or DoD personnel with the approval of the local spectrum manager.

Specifications

• Frequency:
  1.575 GHz, typical
• Bandwidth:
  20 MHz
• Pre-amp Gain:
  35 dB, 38 dB (max.)
• Noise Figure:
  2.75 dB
• Output SWR:
  2.0:1
• Required DC Input Voltage:
  4.5 VDC – 5.5 VDC
• Current:
  22 mA

Product Codes

• Mfr Part No
  GPS-ITS-N-110
• ECCN
  7B994
• SCHEDULE B CODE
  9014.90.0000

Documentation

• GPS-ITS datasheet
